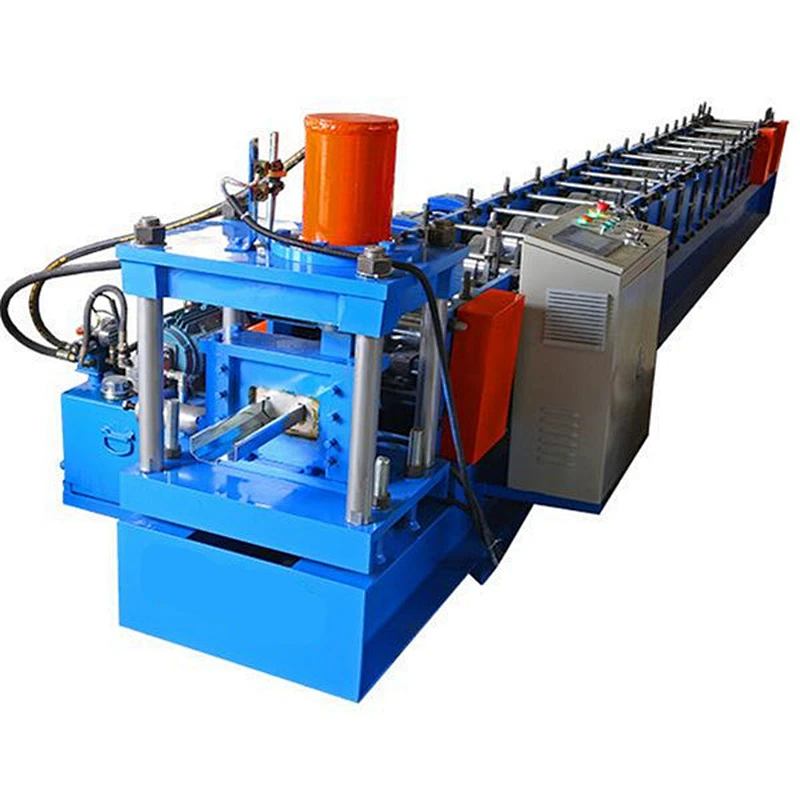

Metal Door Frame Roll Forming Machine
This metal door frame roll forming machine is designed for making the metal door frame production in batch fully automatically.

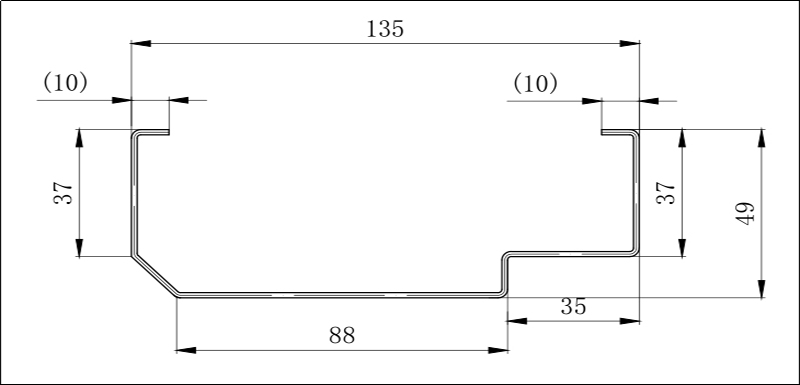

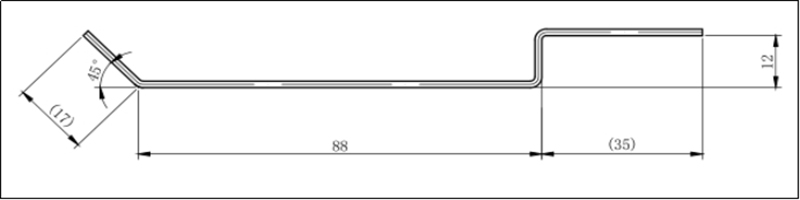

Metal Door frame drawing profile for your reference:

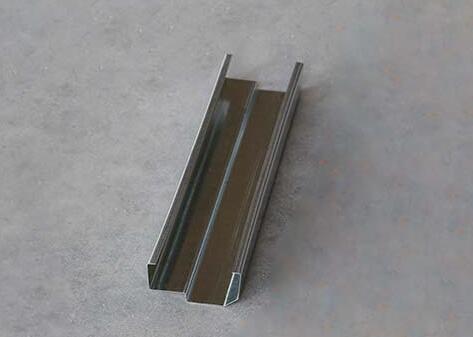

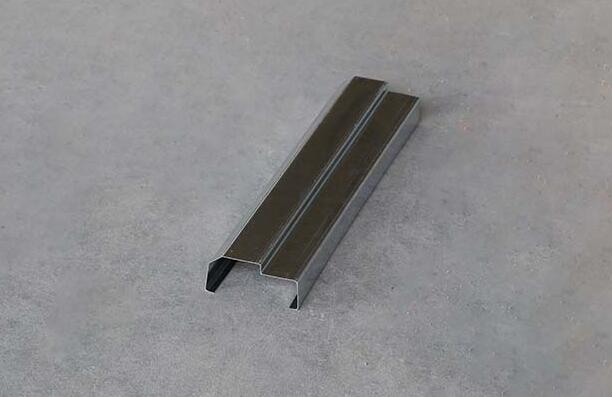

Finished product profile:
The Work Flow of the metal door frame roll forming machine
Decoiler→Feed Guide Device→Rolling Forming System→Hydraulic
Post Cutting Device→Exit Rack

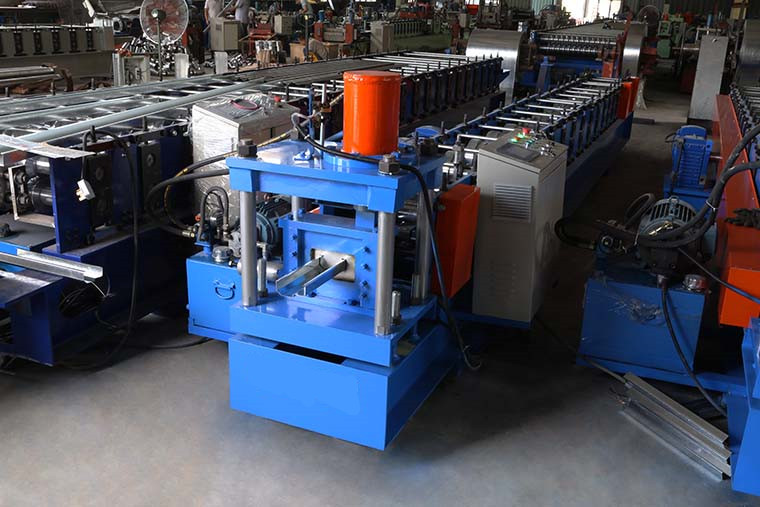

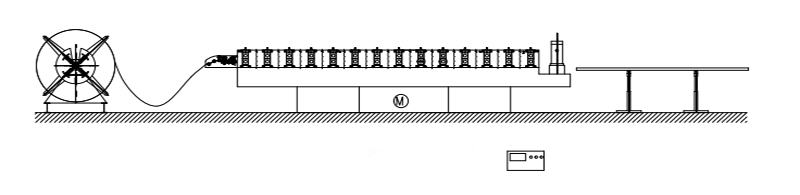

Based on the customer requirements and our experience, we design the door frame Roll Forming Machine like following picture:
The metal door frame Roll Forming Machine is composed by the following elements:

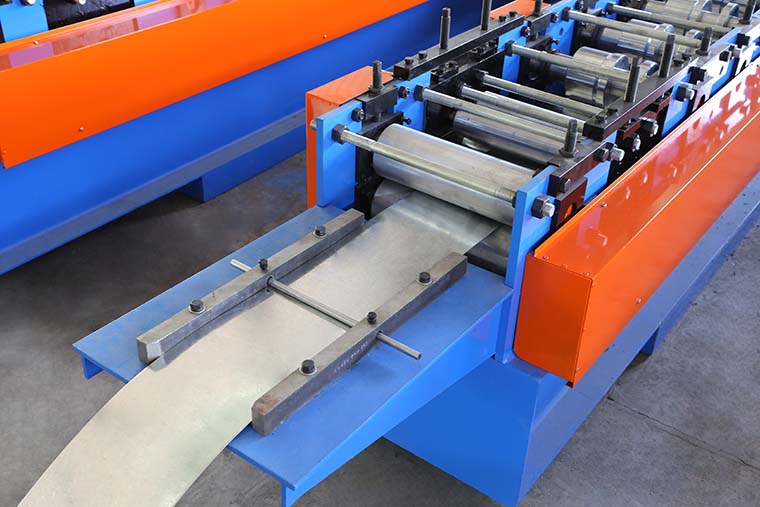

1)Metal door frame roll forming machine feeding guide

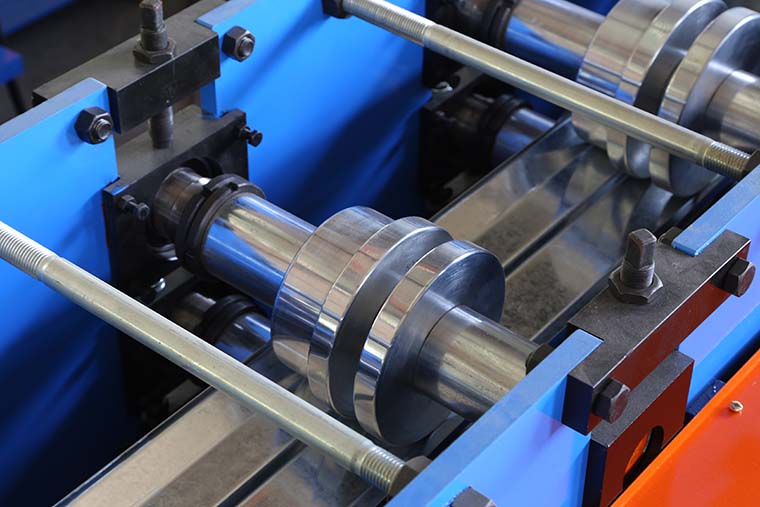

2) Metal door frame roll forming machine rollers
Rollers manufactured from high quality bearing steel GCr15,CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide,body framemade from 400# H type steel by welding

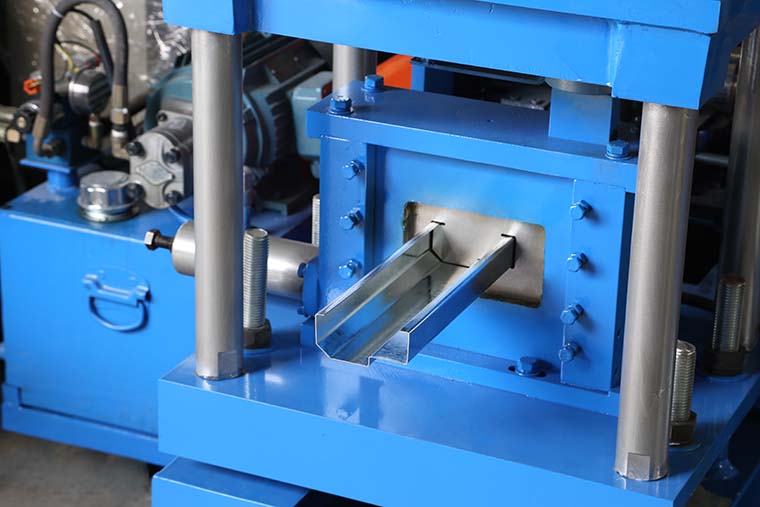

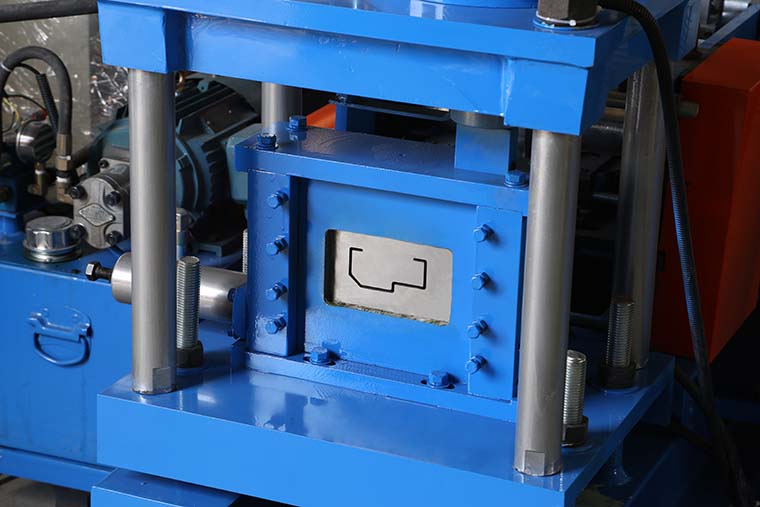

3) Metal door frame roll forming machine post cutter
The advantages of metal door frame roll forming machine are as follows:
1.Accuracy Profile
2.Stable
3.Easy operation, low maintenance cost
4.Beautiful appearance.
5.Customorized for any size you want
2.Detailed lmages of metal door frame roll forming machin
