STEEL STUD ROLL FORMING MACHINE

Model NO.: Lee2021092207

Quantity:

Product Description

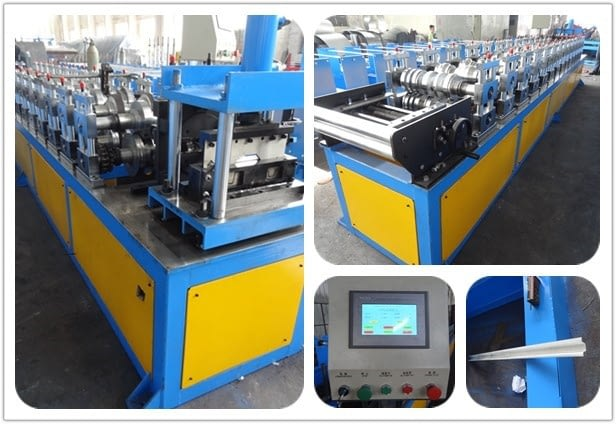

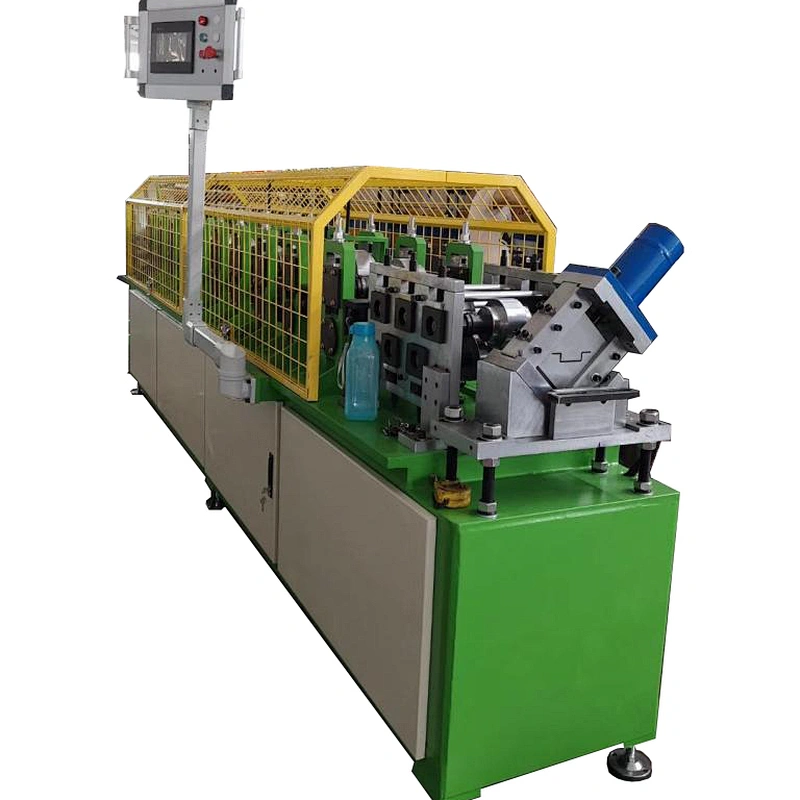

Steel Stud Roll Forming Machine

ZTis engaged in design and manufacture a full range of roll forming machines for steel studs and tracks. We have different design of roll formers for the machine for different requirements.

What’s Steel Studs and Manufacturing equipment?

A steel stud is a vertical frame member in building’s wall of small cross section than a post. They are a fundamental element in frame building.
In the past, studs are made of wood. But the wood need dry when used or problems may occur as the studs shrink and twist as they dry out. So steel studs are gaining popularity, especially for firewalls.
Now the factories purchase Steel Stud Roll Forming Machine for producing the steel studs, for the different production capacity, Believe Industry have below design of the steel studs roll former:

Single Profile Roll Forming Machine
Muti-Profile Roll Forming Machine
Duplex Roll Forming Machine

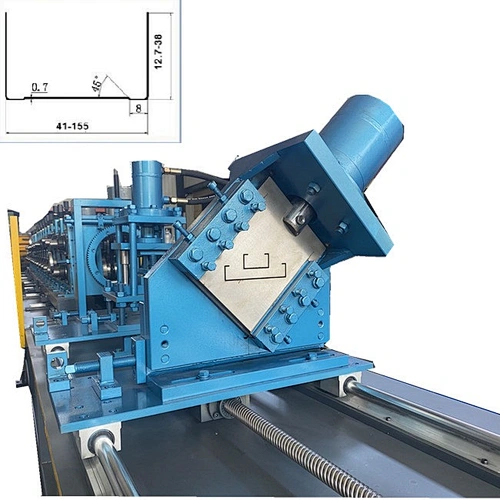

Manual adjust roll forming machine for muti-profile

Main Machine Components and Technical Specifications

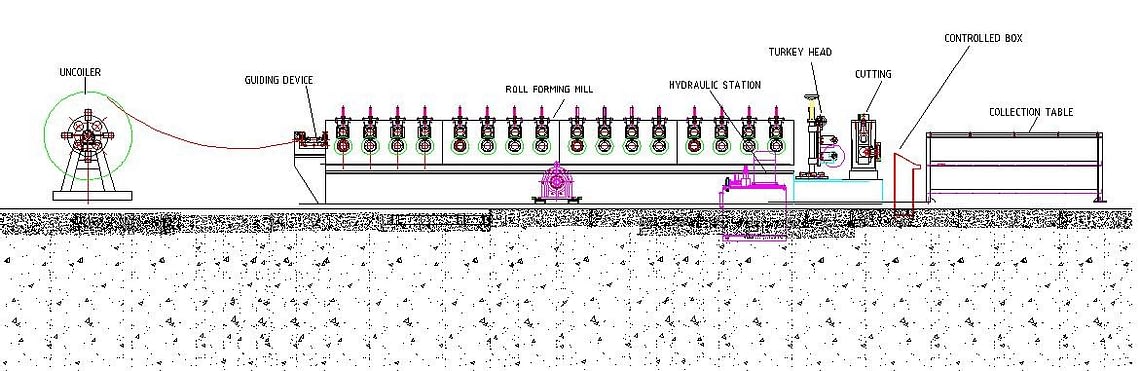

The Layout of Steel Stud Roll Forming Machine

3 Ton Electric Uncoiler

Item	Description
Function	Support the coil strips and electric uncoiling the coil into the roll forming mill
Capacity	3 Ton
Inner Diameter of the coil	480-600
Out Diameter of the coil	1500mm Max
Uncoiling Motor Power	1.5KW

Steel Stud Roll Forming Mill

Item	Description
Function	Roll forming the steel strips into profile with the desired length
Structure	Adopt Box Beam as the main base, guide pole type as the stands
Roll Station	16 steps
Shaft Material	ASTM 1045, 80mm diameter
Spacer Material	ASTM, surface chromed, wall thickness is 8mm
Roller Material	GCR15, fine machining, surface chromed 0.05mm thickness
Driven Motor Power	7.5KW
Roll Forming Speed	15m/min
Driven Method	Chain and gear

Hydraulic Cutting Device

Item	Description
Function	Cut the steel studs into desired lengths, which is set by the controlled box
Cutting Mould Material	CR12, HRC 60-62 °
Hydraulic Motor Power	4KW
Hydraulic Working Presure	12-16 MPA
Length Measuring	Omron encoder

Controlled Box

Item	Description
Function	The worker set the required data on the touch screen and it will display the status, and the machine will be automatic run.
Voltage Supply	380V, 50HZ, 3 phase ( customized)
Touch Screen	MCGS or Siemens
PLC	Panasonic or Siemens
Encoder	Omron encoder
Frequency Inverter	Yaskawa
