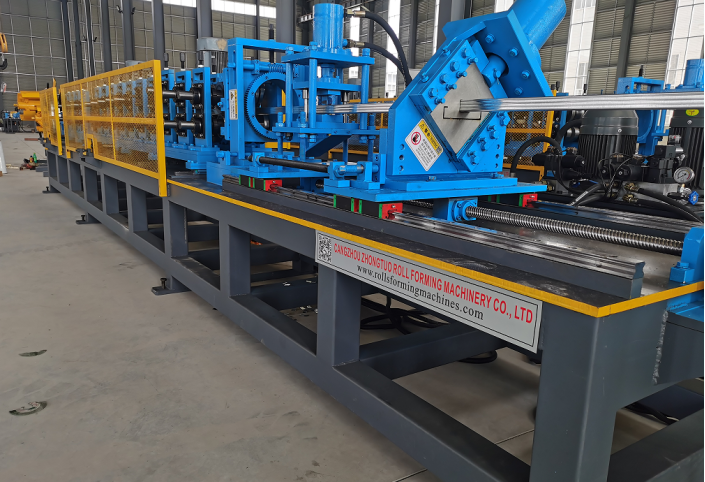

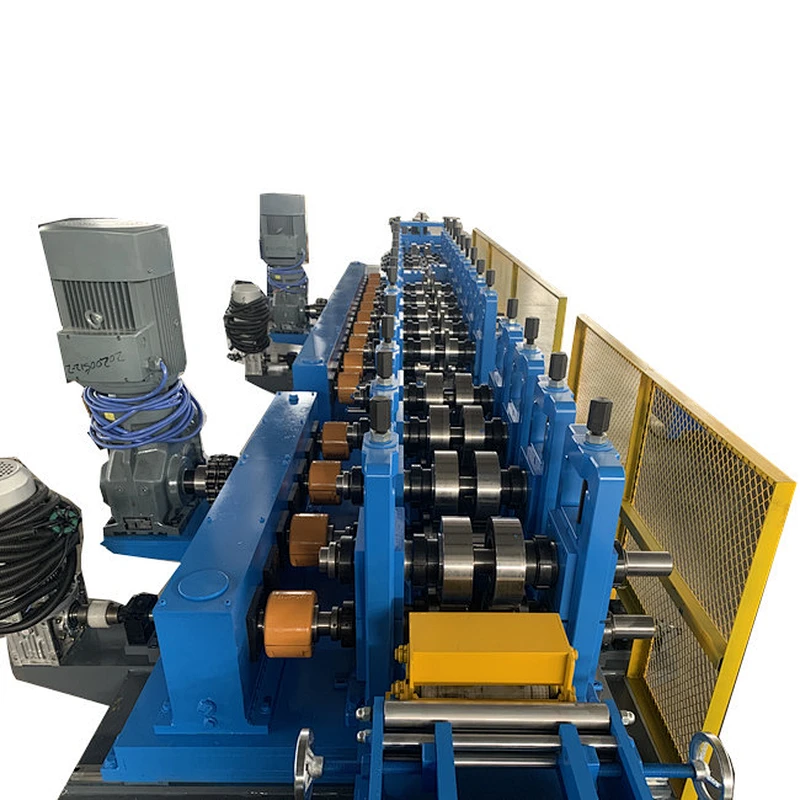

Automatic stud and track rolling forming machine

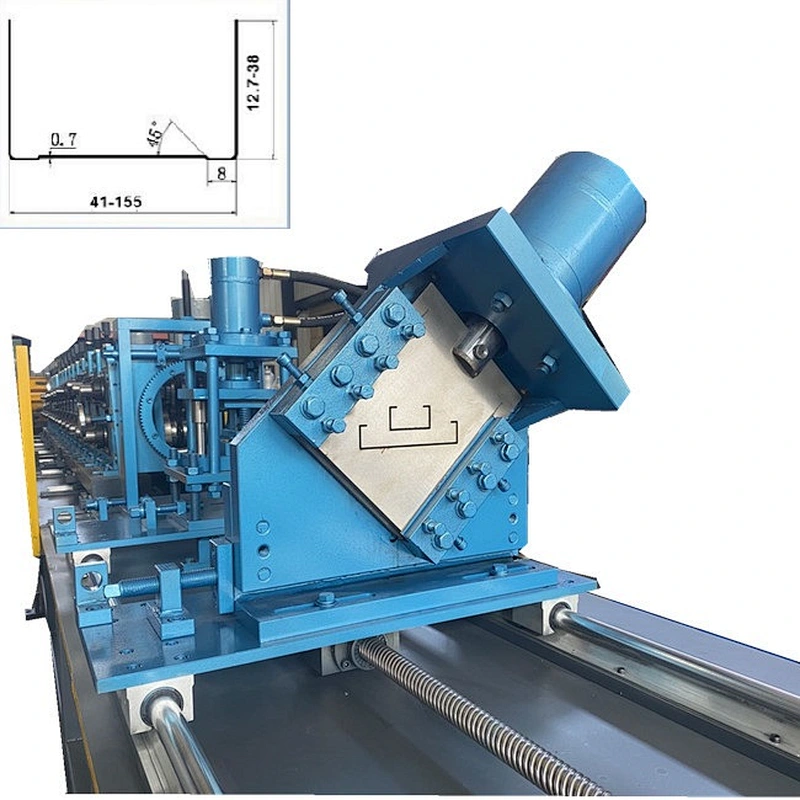

Automatic stud and track rolling forming machine is designed to make the stud and track in batch fully automatic of sizes changing. Stud and track machine. The speed is optional from 25 to 125 meter per minute. High speed and normal speed stud and track machine. Steel Stud Drywall Framing System provides a durable, practical and lightweight structure for internal plasterboard walls and for specific external walls. The availability of various sizes, complimentary components such as nogging tracks, curved tracks and special cleats ensure Rondo stud and Track wall systems are available to suit almost all situations. Here we will take some drawing profile for your reference:

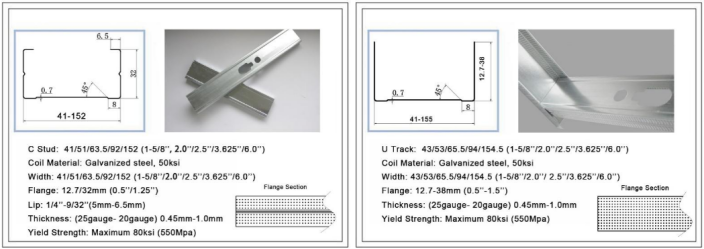

For example, stud and track machine can support the following sizes:
Stud:
Sizes: C41/63.5/92/102/152 (1-5/8’’, 2.0’/2.5’’/3.625’’/6.0’’)
Material：GI Coil
Bottom width ：(1-5/8’’, 2.0’’/2.5’’/3.625’’/6.0’’)
Web flange：32mm（0.5’’/1.25’’）
Lip sizes：5-6.5mm (1/4’’ – 9/32’’)

Track of stud and track machine
Size:U43/65.5/92/102/154(1-5/8’’,2.0’’/2.5’’/3.625’’/6.0’’)
Material：GI Coil
Bottom width：(1-5/8’’, 2.0’’/2.5’’/3.625’’/6.0’’)
Web flange：12.7/32mm/75mm

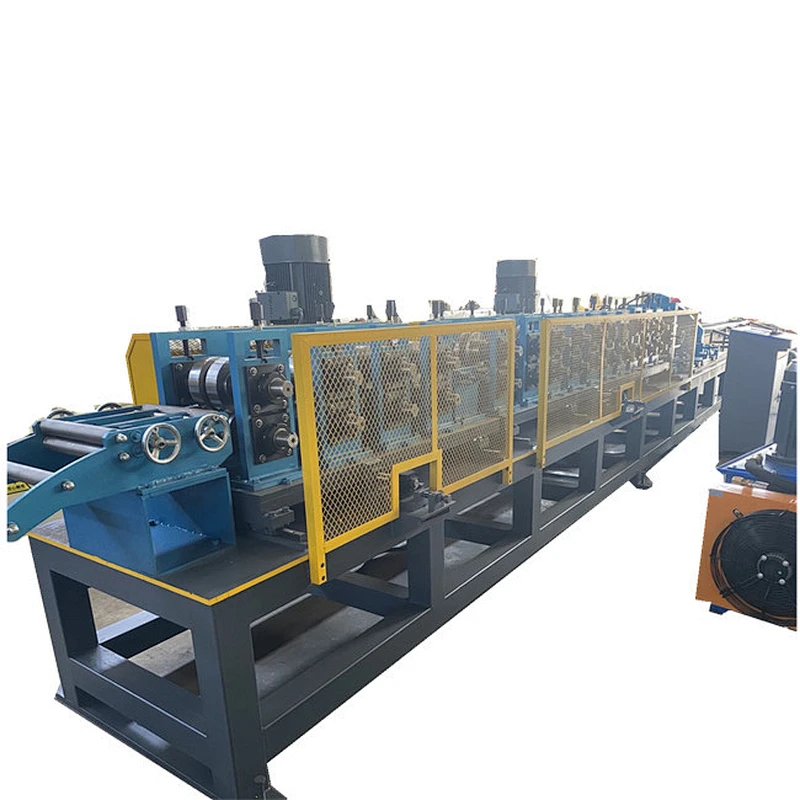

Automatic stud and track rolling forming machine / stud and track machine design:

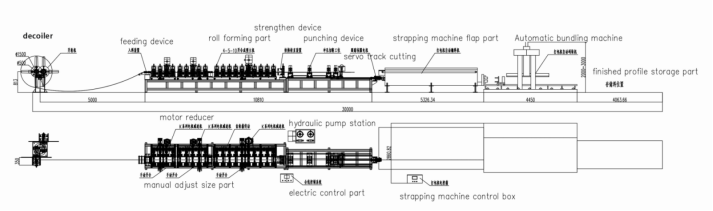

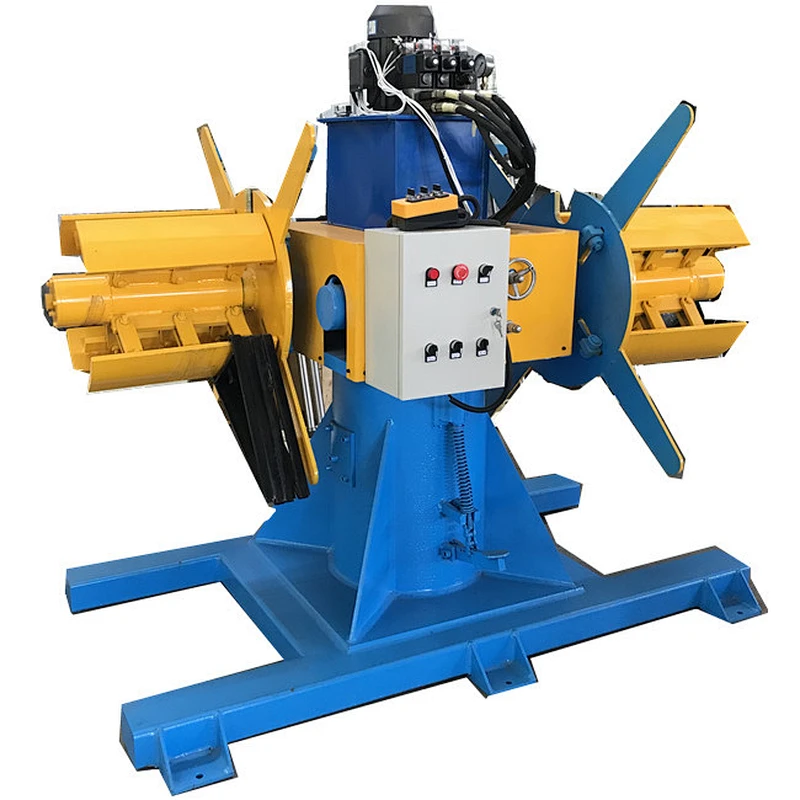

Work flow for automatic stud and track machine:

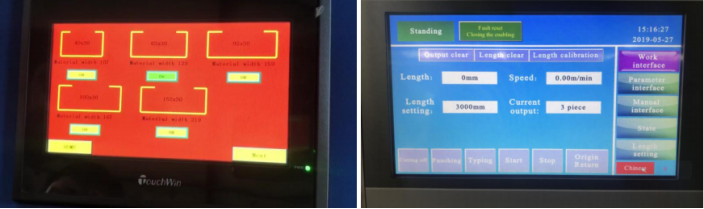

Sizes are adjusted by PLC fully automatically. The shaft with rollers are movable.stud and track machine

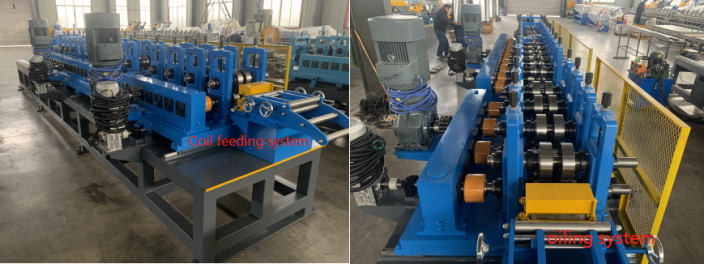

Handrail at the leveling part with guiding system, for feeding coil easily.
With oil drops to cool the roller and make it durable and use for a long time.
Gearbox transmission to make sure fast speed. For our machine the speed could be adjusted from 25 to 120 meter per minute.
Separated rollers for sizes adjustments.stud and track machine

Use two motors for main transmission system to give the power evenly.
Use servo motor for tracking shearing.stud and track machine
Use energy tank for non-stop punching and shearing. By this way, the shearing is more beautiful no bur.
With the adjustable embossing rollers and ribs, you can make them according to your own design.
