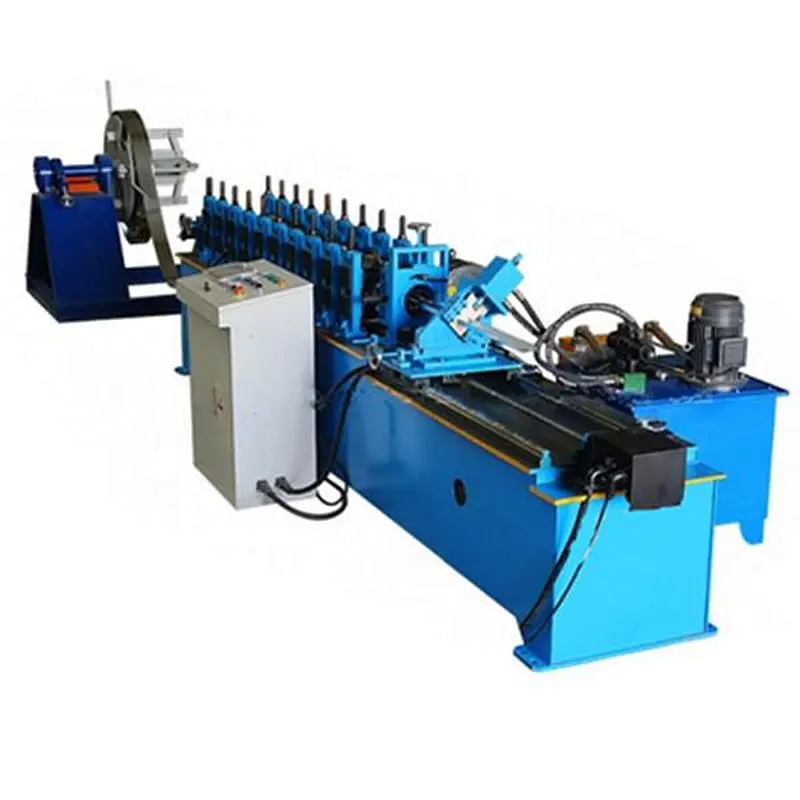

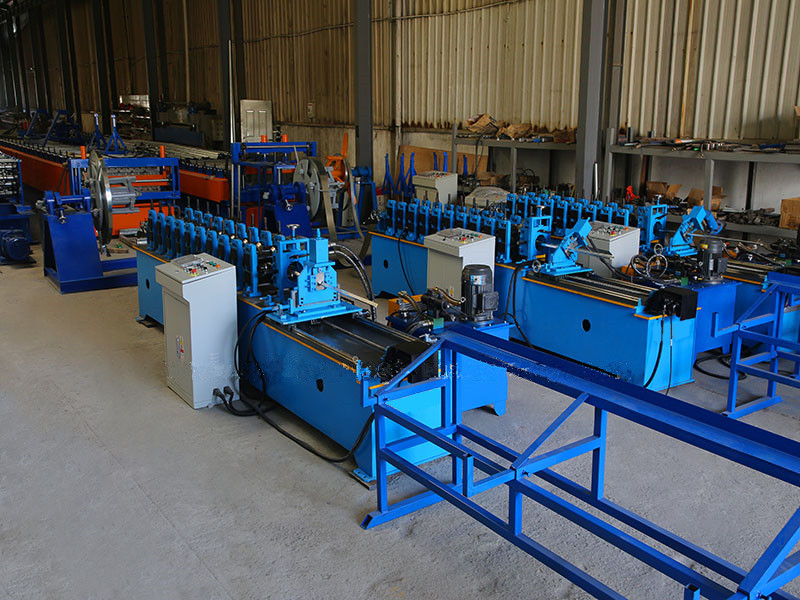

High Speed Ceiling Roll Forming Machine

Model NO.: High Speed Ceiling Roll Forming Machine

Quantity:

Product Description

The High Speed Ceiling Roll Forming Machine is designed for making the metal ceiling panel production in batch fully automatically.

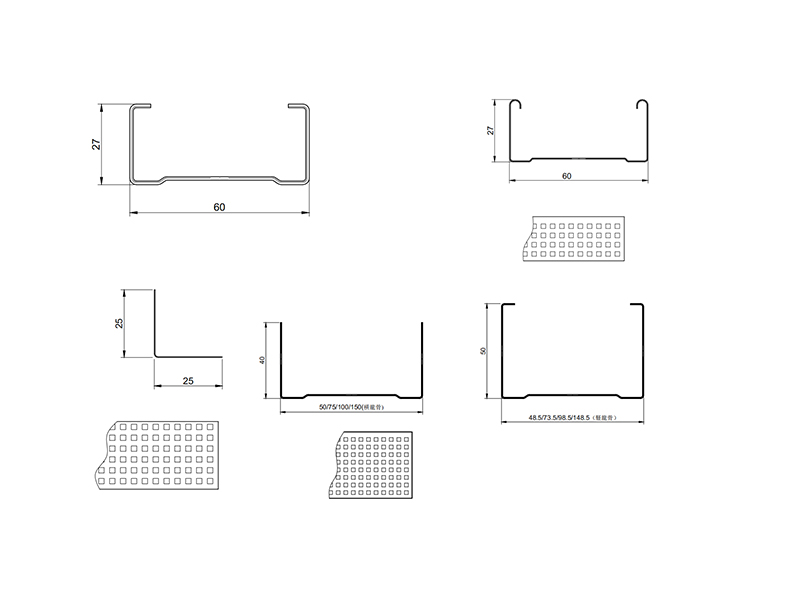

The ceiling panel drawing profile for your reference:

The work flow of the High Speed Ceiling Roll Forming Machine

Decoiler→Feeding Guide Device→Rolling Forming

System→Hydraulic Post Flying Cutting Device→Exit Rack

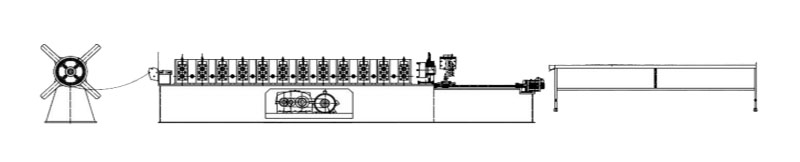

Based on the customer requirements and our experience, we design the High speed Ceiling Roll Forming Machine like following picture:

The high speed ceiling Roll Forming Machine is composed by the following elements:

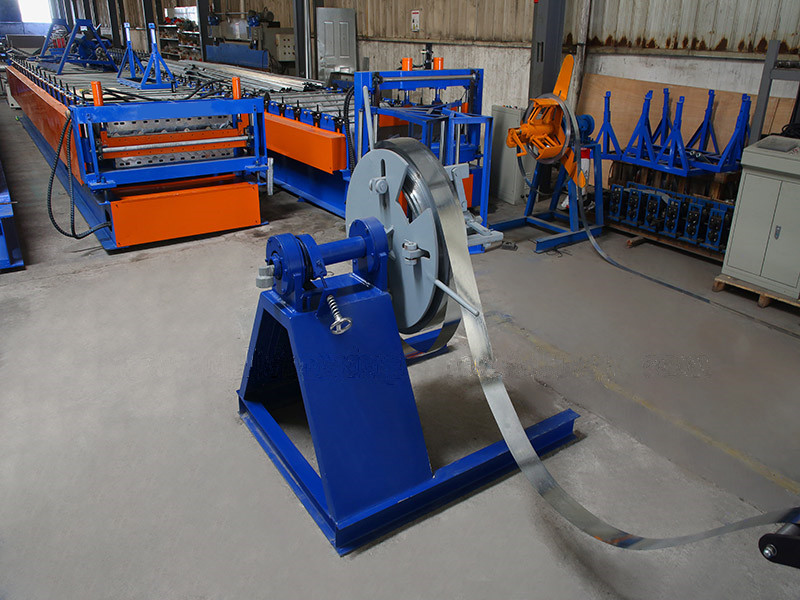

1)Manual Decoiler: one set

Un-powered,Manually control steel coil inner bore shrinkage and stop,MaxFeeding width: 300mm,coil lD range 508mm±30mm Capacity: Max.3 Ton

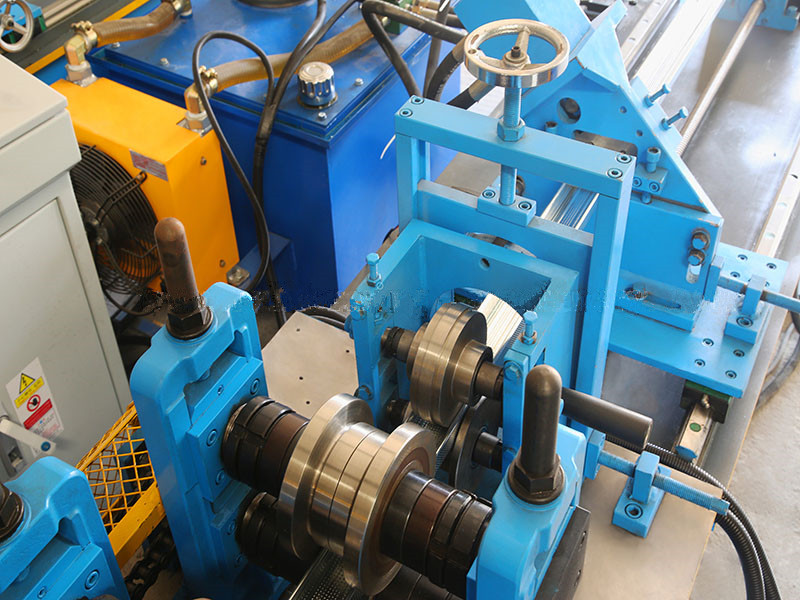

2)Main Machine

With feeding material guide,Body frame made from H400 Steel platewelding.

Memorial arch thickness: Q235 t18mm

Rollers manufactured from Cr12 Steel,CNC lathes,Heat Treatment HRC58-62

The manufactured from 40cr steel,Diameter=dp50mm,quenching and tempering treatment.

Gear & Sprocket driving,about 10-steps to form

Main Motor(Polaroid brand)=5.5KW,Frequency speed control

All the screw bolts with grade 8.8(cheap factories use low grade 4.8)to ensure fix the machine structure tightly and long life during themachine long time running.

Real forming speed:35-40m/min

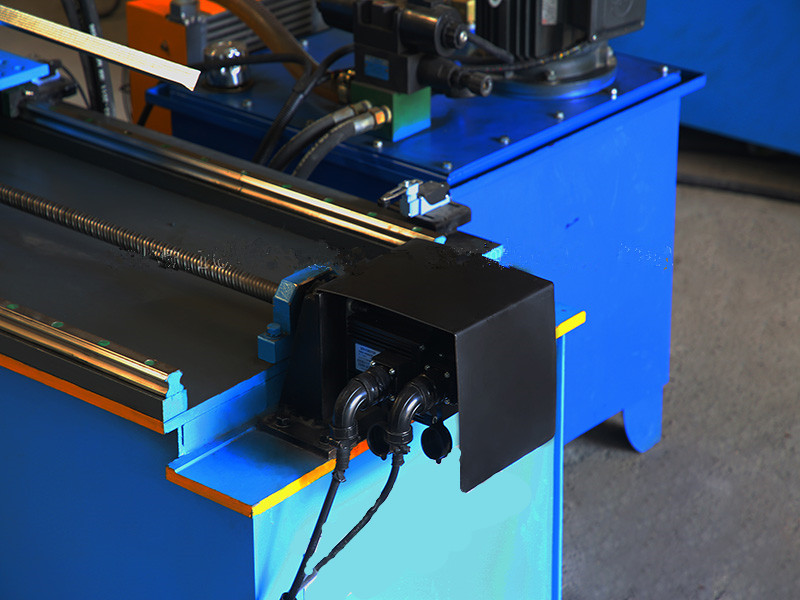

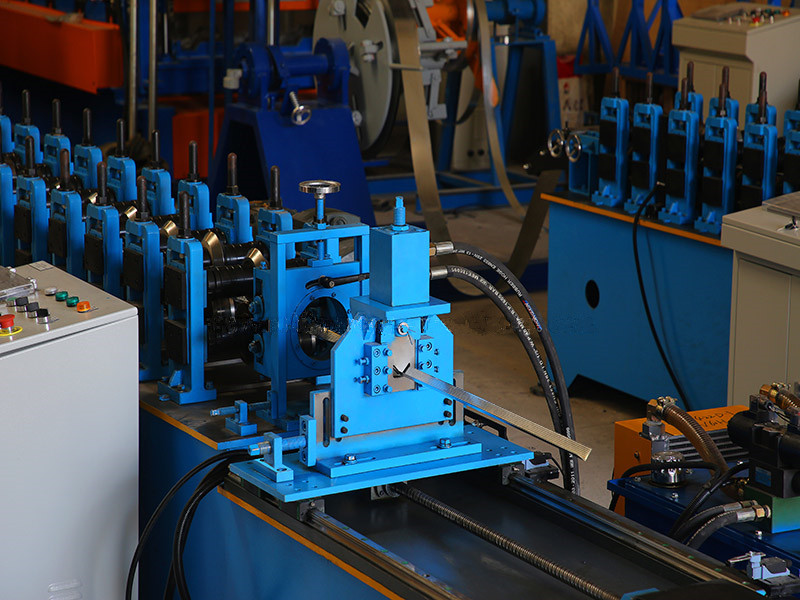

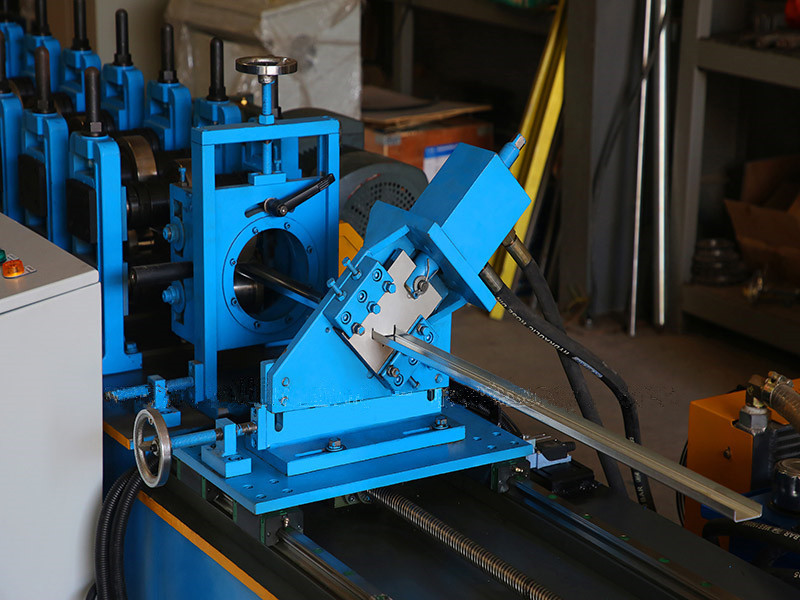

4)Post Hydraulic Flying cutting Device

Not stop to cutting,Two pieces type of cutting blade design, no blankingHydraulic motor:4KW ;Cutting pressure:0-16Mpa,Hydraulic oil number:ShellTellus S2 M 46 or equal model

Cutting tool material:Cr12MoV(=SKD11 with at least one million times ofcutting life), Heat treatment to HRC58-62 degree

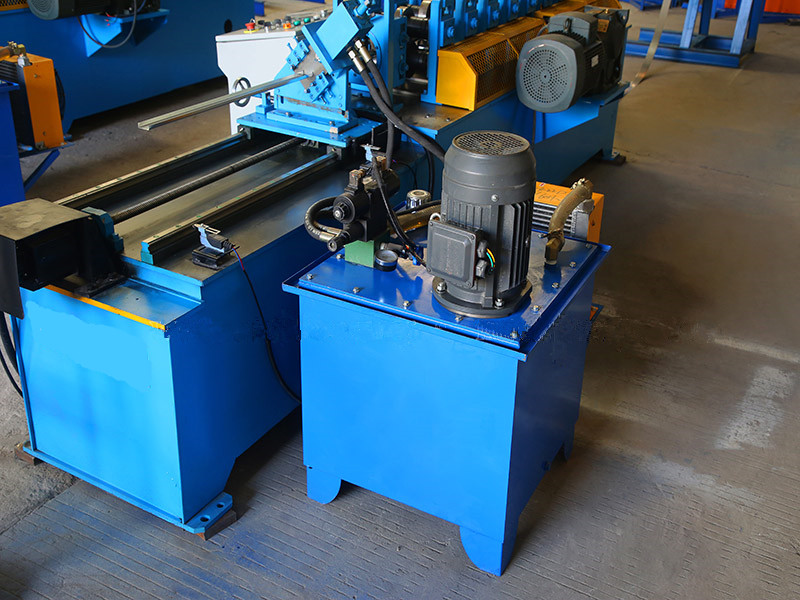

The cutting power is provided by the main engine Independent hydraulicstation

The lndependent hydraulic system with oil filter for the oil filtration,to ensure the circulated oil is clean and lengthen the life ofhydraulic system
