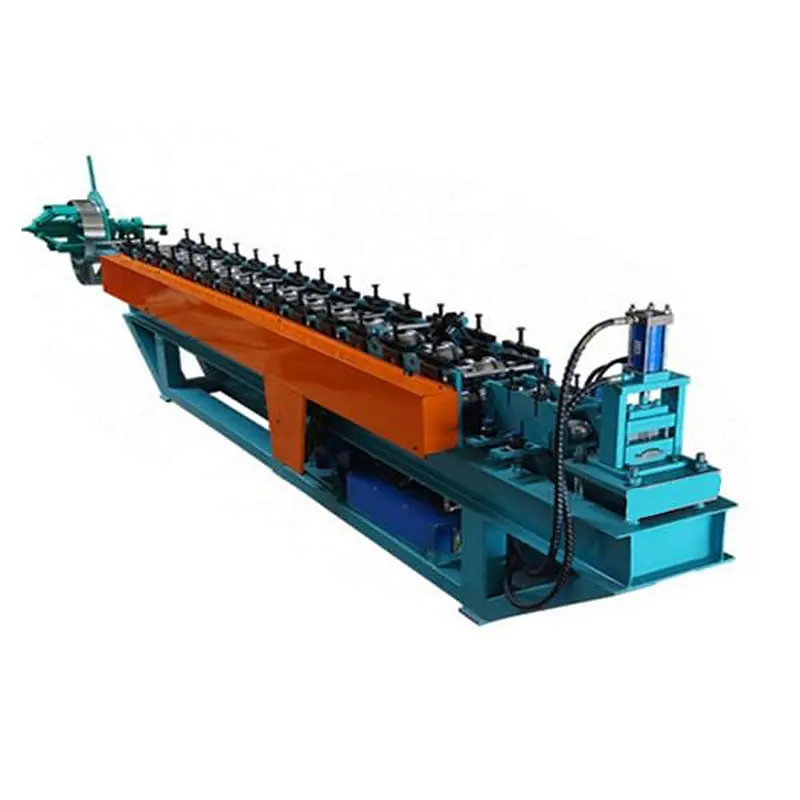

High Quality Roller Shutter Door Roll Forming Machine

Model NO.: High Quality Roller Shutter Door Roll Forming Machine

Quantity:

Product Description

This high quality roller shutter Door roll forming machine is designed for making the shutter door production in batch fully automatically.

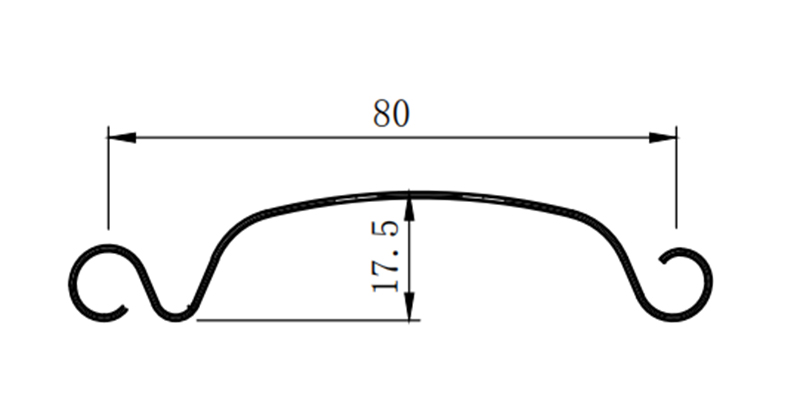

The roller shtter door drawing Profile:

The Work Flow of the High quality roller shutter door roll forming machine

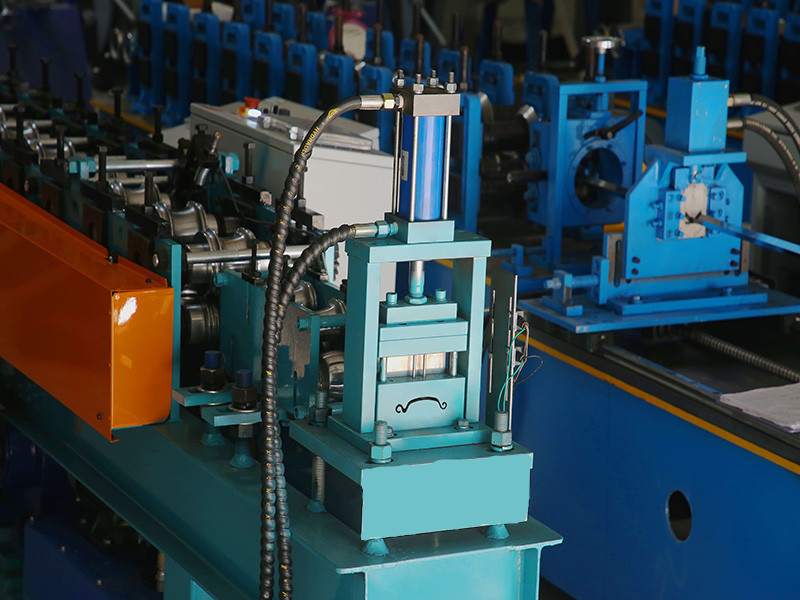

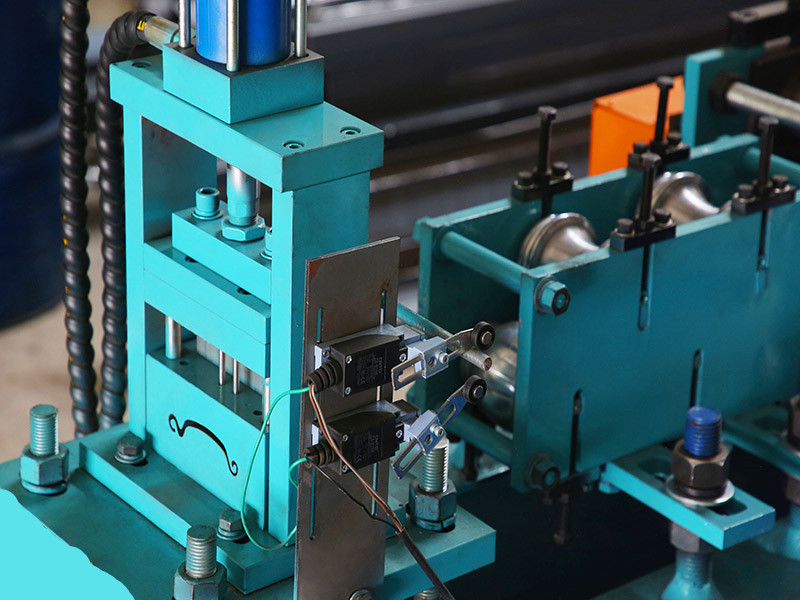

Decoiler→Feed Guide Device→Rolling Forming System→LevelingDevice →Hydraulic Post Cutting Device→Exit Rack

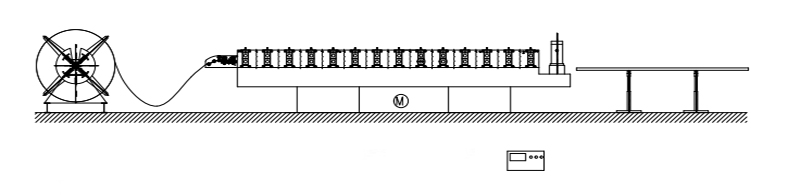

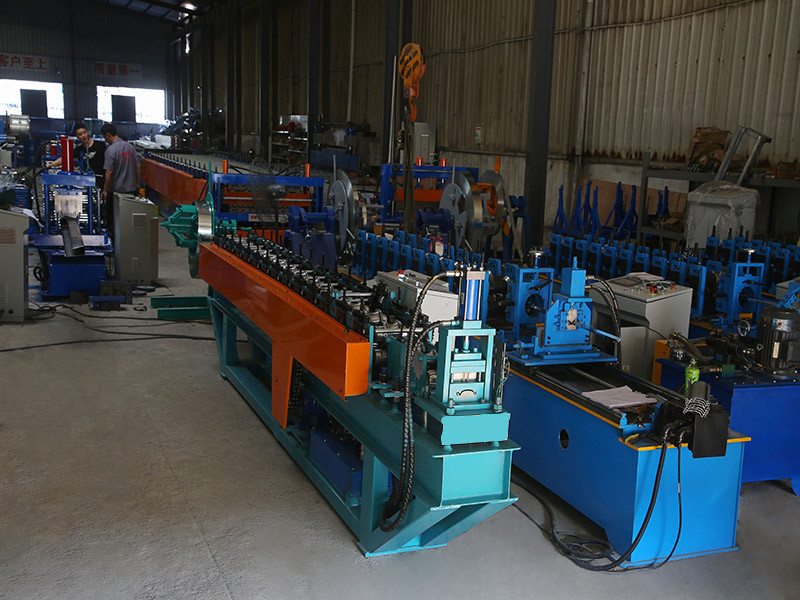

Based on the customer requirements and our experience, we design theRoller shtter door Roll Forming Machine like following picture:

Roller shutter door Roll Forming Machine is composed by the following elements:

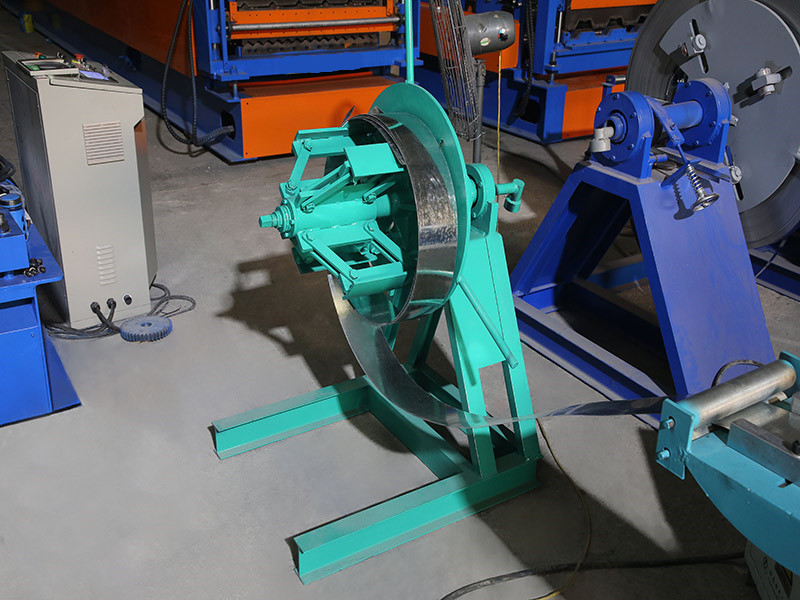

1)3 Ton Manual Decoiler: one setManual control steel coil inner bore shrinkage and stopMax. feeding width:300mm,Coil ID Range:508士30mm

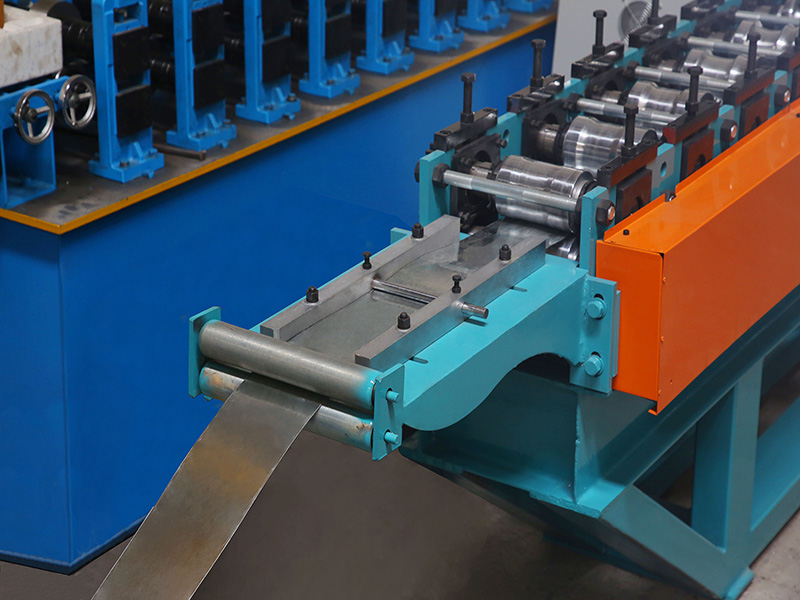

2)Feed Guide Device

A left and right guiding device at the main entrance of the machine.During work,Raw materials on both sides of the plate the enter intothe machine by the left and right guiding device,make the rawmaterials and roll forming system to maintain the correct position.The guiding position can be adjusted by the manual screw

mechanism,and the left and right can be adjusted independently.

3)Main Machine

body frame made from H400 type steel by weldingSide wall thickness: Q235 t18mm

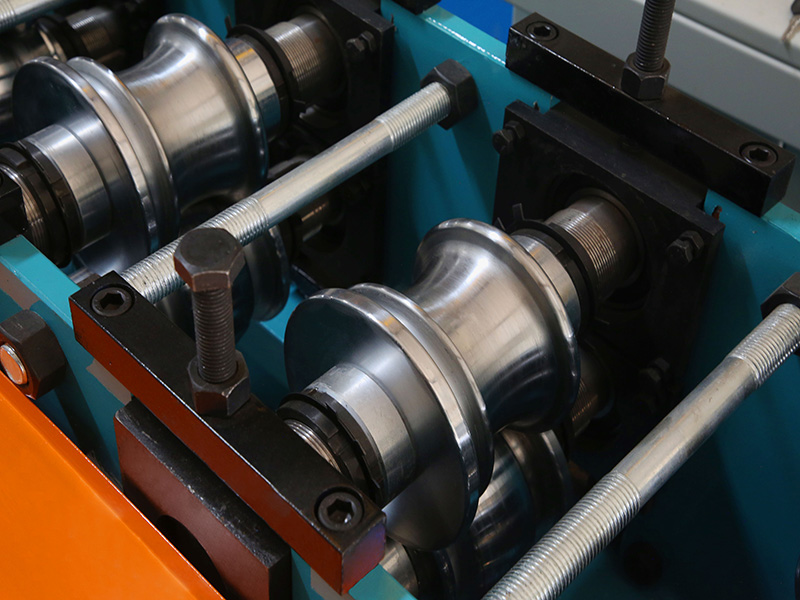

Rollers manufactured from 40Cr,CNC lathes,Heat Treatment,hard Chrome Coated,with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)

Shafts Diameter=Φ50mm,precision machined Gear/ Sprocket driving,about 14-step to form

Main Motor(Polaroid brand)=5.5KW,Frequency speed controlSpeed redcucer motor:R series

All the screw bolts with grade 8.8(cheap factories use low grade 4.8) to ensurefix the machine structure tightly and long life during the machine long timerunning.

Real forming speed 0-20m/min(Not include cutting time and punching time
