Australian Saudi Style Rolling Shutter Door Machine
The design of this type Rolling shutters from the Australian and it leads shutter manufacturers B&D. These doors are mostly used for garages in villas and in shops. They can be operated manually or electronically and have an auto reversing safety system. They are water proof & specifically designed to withstand the rigors of the Middle Eastern climate. There are many types, we can design the machine according to the drawing profiles. Here I will take some random drawing profiles for your reference:
Australian Saudi Style Rolling Shutter Door Machine:
Processing material: colored steel plate, galvanized plate, or aluminium plate
Material hardness: 550 mpa---350 mpa
Material width: 178mm-203mm
Formed width: 101.6mm
Forming speed: 20 to 25 m/min

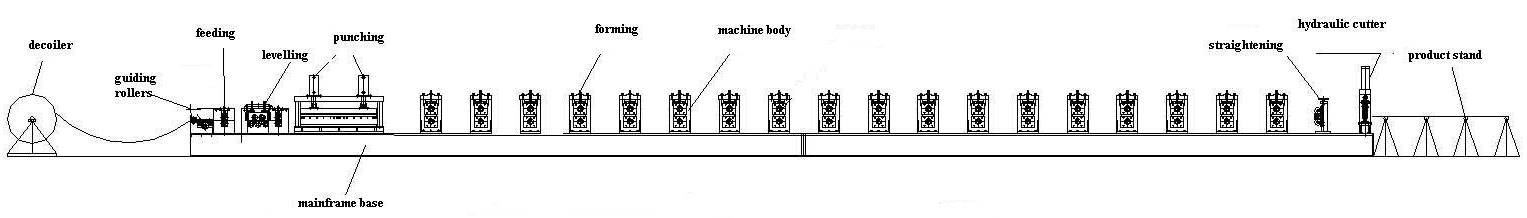

Machine working flow:
For the decoiler part: you can choose to use manual one or hydraulic one:
Usage: It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming sysytem
Loading capacity:5T
Uncoiling width:400mm
Inner diameter: 450-508mm
Australian Saudi Style Rolling Shutter Door Machine

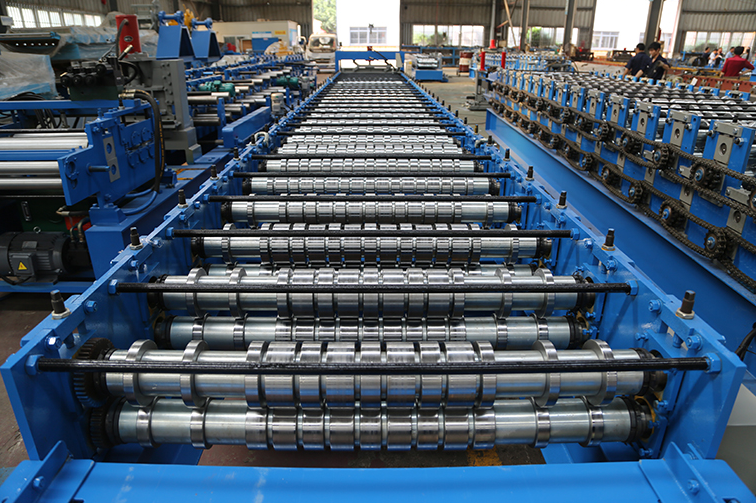

Feature: Ensure stability, precision and lifetime.

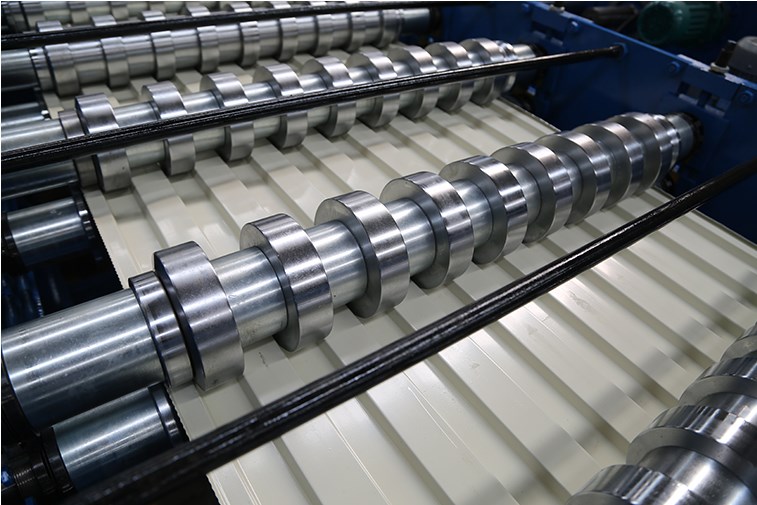

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission ( the first and the last roller,the down roller should be attached with the upper one with the chain drive.), roller surfaces polishing, hard plating , heat treatment and galvanizational treatment . The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Length of the main part: about 12000х1700х1500
Weight of main part: 5 tons
Voltage : 380V 50HZ 3Phase
Roller fixer : Guide column
Frame : 400 H steel
Drive mode: chain
Material of rollers:45# steel, surface hard chromium plating.
Material of shafts: 45# steel with tempering
Diameter of shafts: φ70mm
Number of rollers: 25 rollers
Separated molding to make sure shape beautiful.
Main power: 15kw（cycloidal planetary gear speed reducer）
Australian Saudi Style Rolling Shutter Door Machine

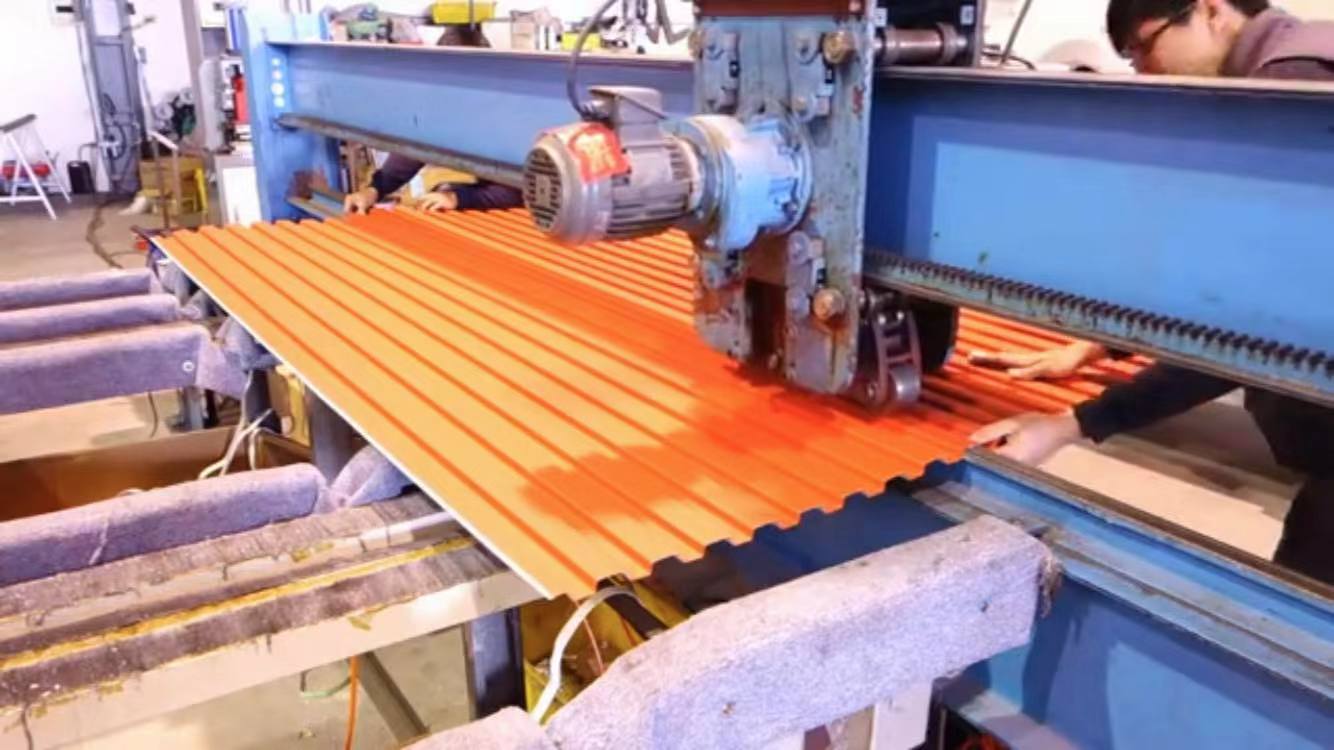

With the seaming device like the following pictures: this device can help you do the connection of the two shutter panels.
Australian Saudi Style Rolling Shutter Door Machine working videos for your reference:
