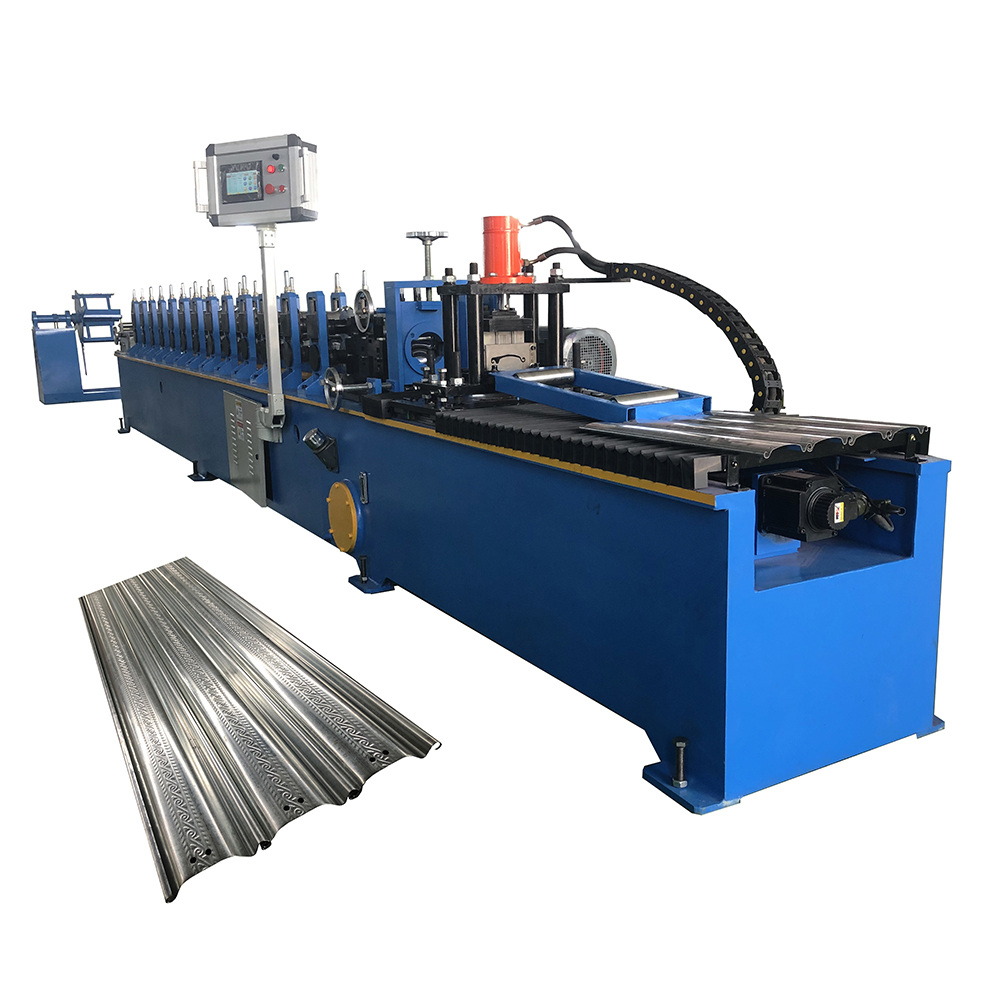

Galvanized steel Rolling shutters forming machine with flat or curved cross section (solid)
Rolling shutters forming machine of galvanized steel profiles with flat or curved cross section (solid) is professionally designed for producing rolling shutters in various types. First let us check how many types rolling shutter has Rolling shutter door:

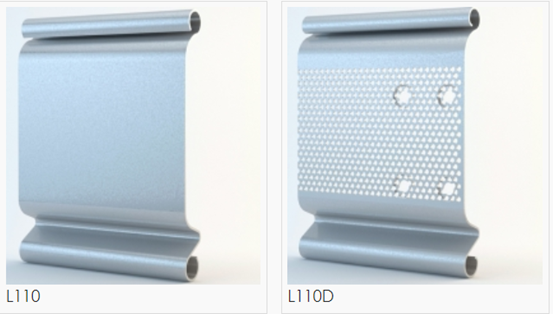

Rolling shutter of L110 with punching and without punching, with lock hole and without holes:
The L110 rolling shutter is of galvanized steel profiles with flat cross section. It is made of galvanized steel with thickness from 0.6mm to 1.2mm, depending on your needs.

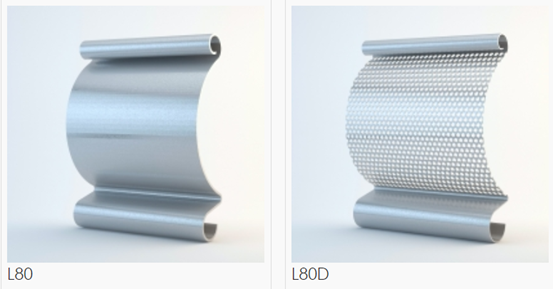

L80 is different with L110, it is curved but we can design it either with punching and without.shutter has Rolling shutter door steel roll forming section
the L80 rolling shutter of galvanized steel profiles with curved cross section is made of galvanized steel (thickness 0.6mm up to 1.0mm depending on your needs). It has optimized cross section and reinforcements at key points for improved durability and reliability, even when fitted in extremely wide openings and regions with high wind pressure. The profile of the rolling shutter that touches the ground is extensively reinforced and consolidated so that it delivers the highest levels of security. The product is further provided with a sealing rubber band that ensures the outmost adaptability and tightness of the roller shutter to your space.
High Speed Rolling shutters forming machine designs:
High Speed Rolling shutters forming machine designs Features:
With auto-oiling system Do the oiling and cooling on rollers
Use gearbox and molding frame Locking holes
Servo tracking system Good profiles rolling forming
Rolling shutters forming machine of galvanized steel profiles with flat or curved cross section (solid), daily used in life.
How to get the accurate quotation?
For making the quotation fast and accurate of rolling shutters, please supply the drawing profile like this and then we can the quotation for you at once.steel roll forming section
Rolling shutters forming machine working videos for your reference:
Rolling shutters forming machine of galvanized steel profiles with flat or curved cross section (solid) is professionally designed for producing rolling shutters in various types. First let us check how many types rolling shutter has Rolling shutter door:
Rolling shutter of L110 with punching and without punching, with lock hole and without holes:
The L110 rolling shutter is of galvanized steel profiles with flat cross section. It is made of galvanized steel with thickness from 0.6mm to 1.2mm, depending on your needs.
L80 is different with L110, it is curved but we can design it either with punching and without.shutter has Rolling shutter door steel roll forming section
the L80 rolling shutter of galvanized steel profiles with curved cross section is made of galvanized steel (thickness 0.6mm up to 1.0mm depending on your needs). It has optimized cross section and reinforcements at key points for improved durability and reliability, even when fitted in extremely wide openings and regions with high wind pressure. The profile of the rolling shutter that touches the ground is extensively reinforced and consolidated so that it delivers the highest levels of security. The product is further provided with a sealing rubber band that ensures the outmost adaptability and tightness of the roller shutter to your space.

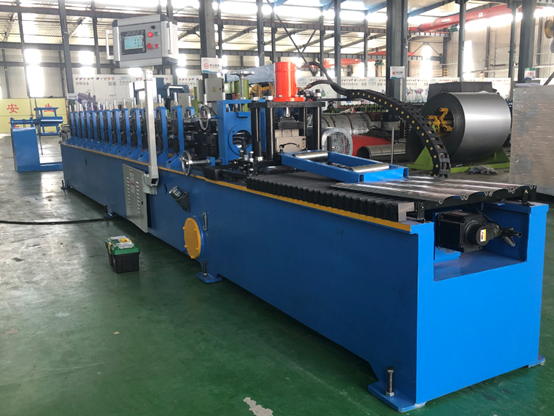

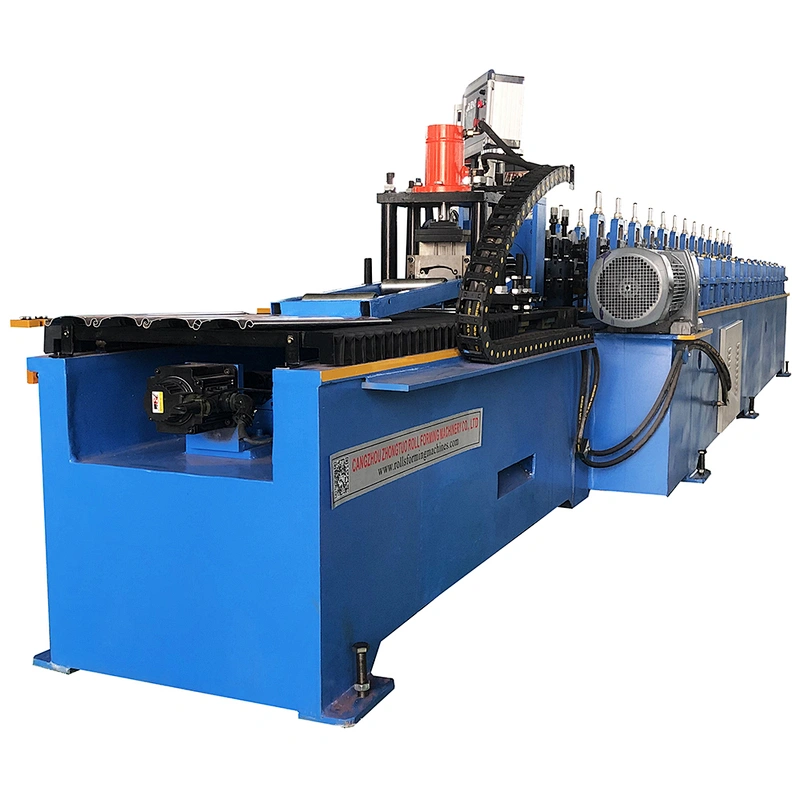

High Speed Rolling shutters forming machine designs:
High Speed Rolling shutters forming machine designs Features:
1.It supports hot dip galvanized steel, GI and other material.
2.It can make the contemporary look, wavy appearance
3.Support the material thickness: 0,6 mm, 0,8 mm, 1,0 mm and under special requirement 1, 2 mm
4.The shutters could be heavy and very rigid.
5.The high speed can reach 35 meter per minute.
6.Use the molding frame of 35mm, for long time to use.
7.Use the servo flying tracking cutting saw to get the higher speed.
8.Add the cooling system.
9.With the oiling system to protect the coil and rollers.
With auto-oiling system Do the oiling and cooling on rollers
Use gearbox and molding frame Locking holes
Servo tracking system Good profiles rolling forming

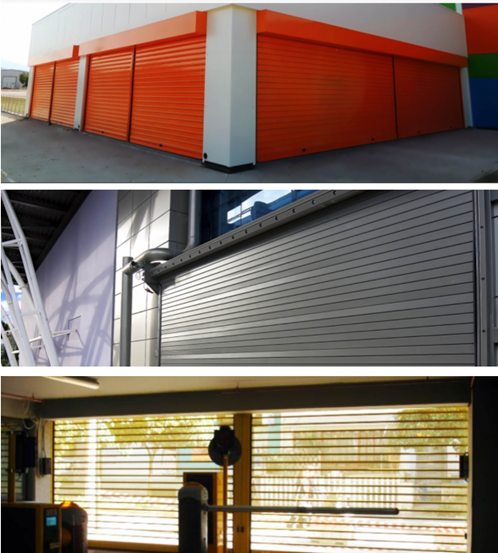

Rolling shutters forming machine of galvanized steel profiles with flat or curved cross section (solid), daily used in life.
How to get the accurate quotation?

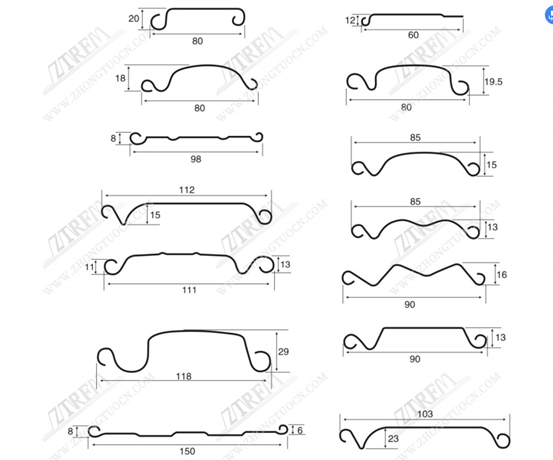

For making the quotation fast and accurate of rolling shutters, please supply the drawing profile like this and then we can the quotation for you at once.steel roll forming section
Rolling shutters forming machine working videos for your reference:
