Angle Bead Roll Forming Machine

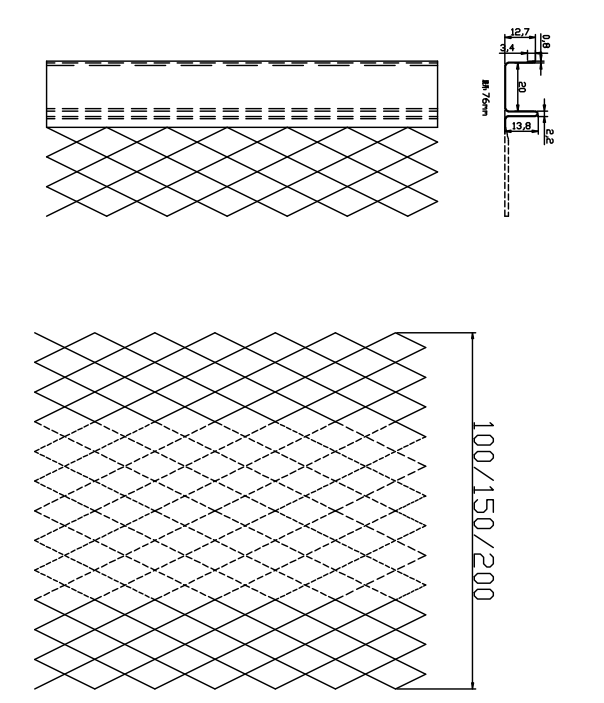

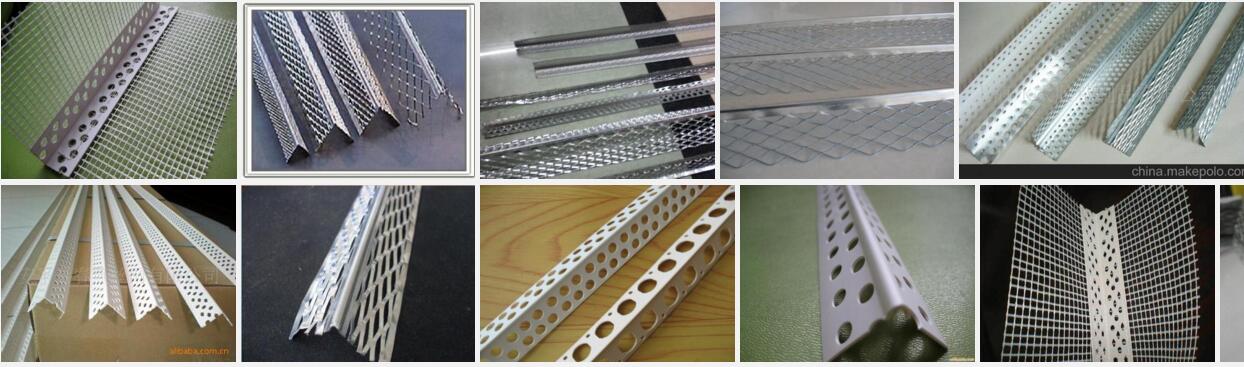

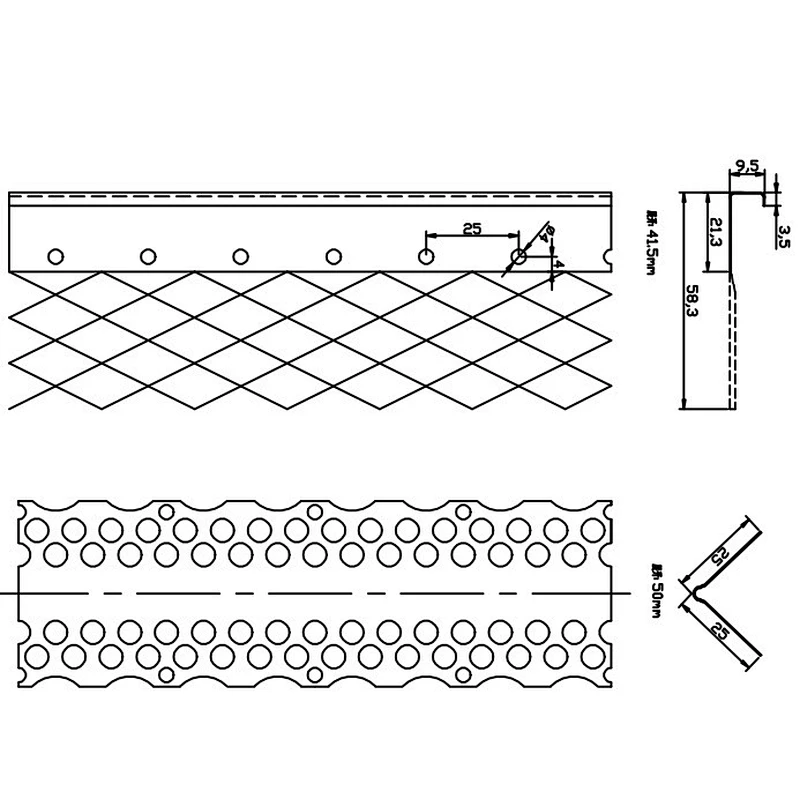

The angle bead roll forming machine can be used to batch make wall angel beads and fully automatically. For wall angle beads, it is also called trailing wall angle, it is used to protect the wall cone. Angle beads are thin plastic or metal sheet strips used to cover the outside corners of plastered or plaster-sided walls. They are long corner strips that are generally made of solid material right at the corner and made of perforated or mesh material around the edges. There are many kinds of wall angle beads on the market, here are some pictures for your reference:

The angle bead roll forming machine is the same as other roll forming machines, it can batch make the wall angle beads. Unlike other machines, you need to drill first, make the metal strip in holes or with diamond holes, and then make the roll forming machine. For the punching machine, our factory specially designed and obtained the pattern. The drilling mold can be used repeatedly after one or two times of fixing. Here is more information and parameters of the angle bead machine for your reference:

Netty edge punching machine:

Working speed: 110-130 time / min.

Main power: 3kw

Servo coil feeder with PLC control system

Drilling pressure: 25 tons

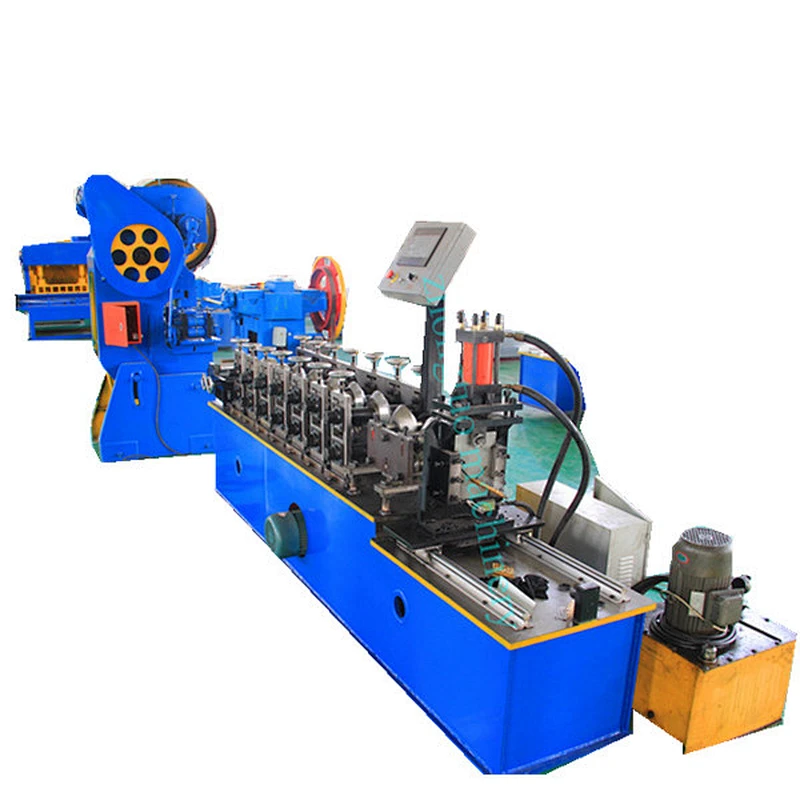

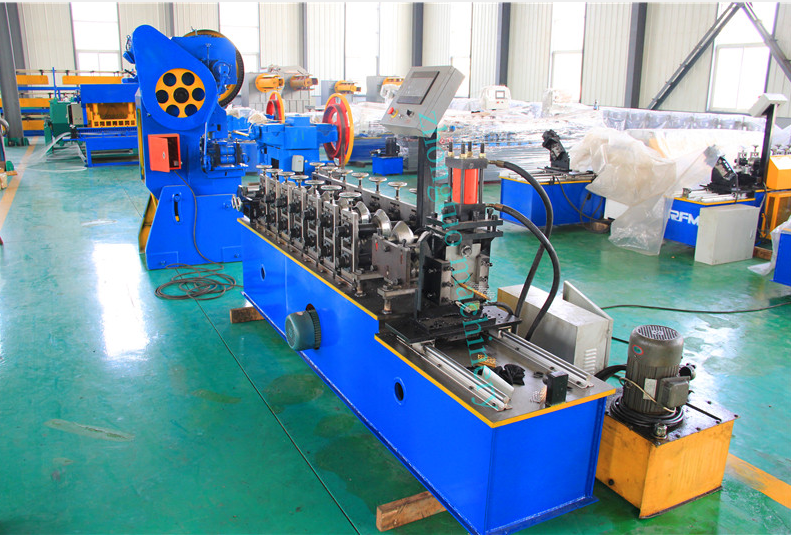

Main Roll Forming Machine:

Main part length: about 3500х800х1400

Main part weight: 3 tons

Voltage: 380V / 50HZ3Phase (as customer's request)

Roller clamp: guide column

Frame: welded intermediate plate

Commemorative Arch Frame Type

Frame thickness: 20mm

Driving mode: gear

Roller material: GCr12MoV

Shaft material: 45 # steel with tempered

Shafts diameter: φ40mm

Number of rollers: 9 rollers

Main power: 3 kW

Cycloidal Planetary Gear Speed Reducer）

Different sizes can be produced on this machine.

adjusting the feed width.

Learn more from the following machine operation video:

https://www.youtube.com/watch?v=WHZfxw1A4t8

For this machine, if you need to know, please contact us at any time.
