Sigma Purlins M purline rolling forming machine

Purlin roll forming machine is the most popular and has an extensive use in the construction work. Sigma Purlins M purline profile, we can design according to the size range, thickness range and give the different solutions of purlin roll forming machine to manufacturer a complete range of structual purlins(height and width change using automatic system by motors): In the market, the most popular is C/U/Z/M section-manual change 4 stations from C to Z, change time: 2 minutes

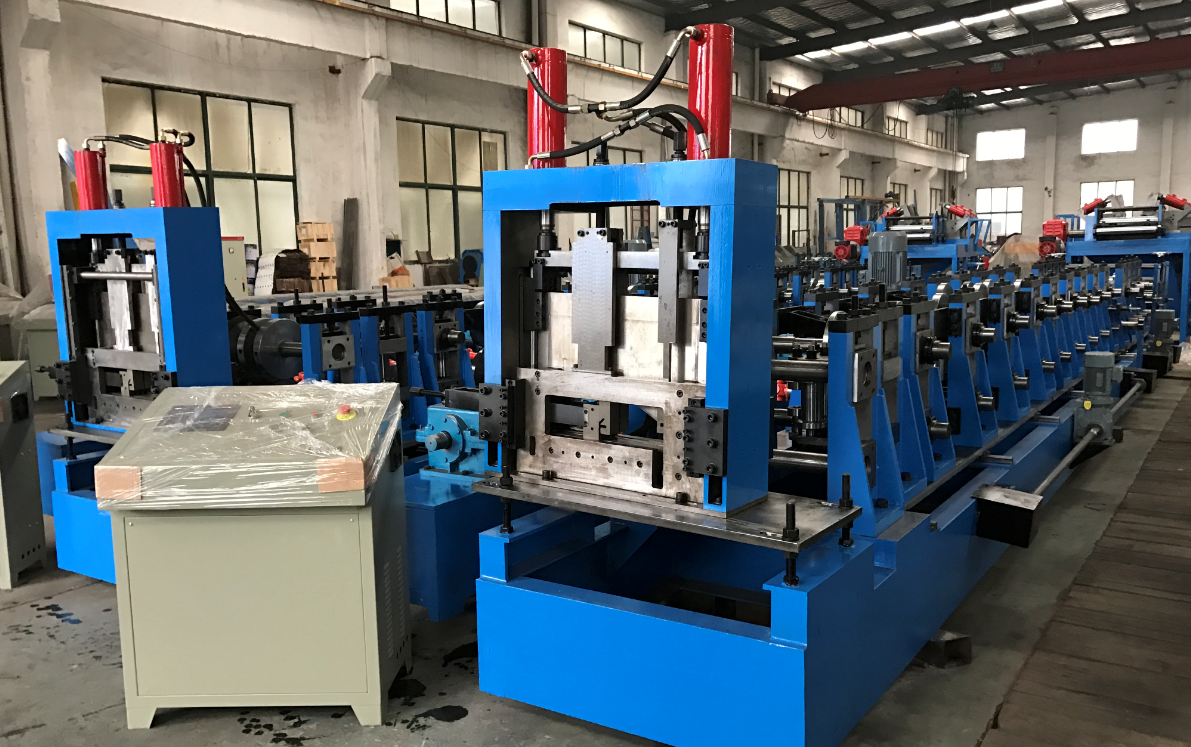

C/U/Z/M section-automatically change from C to Z, change time: few seconds. But this design, the cost will be a little higher. Here I will share a more economic design which only can produce M purline, by this way we can save the cost:

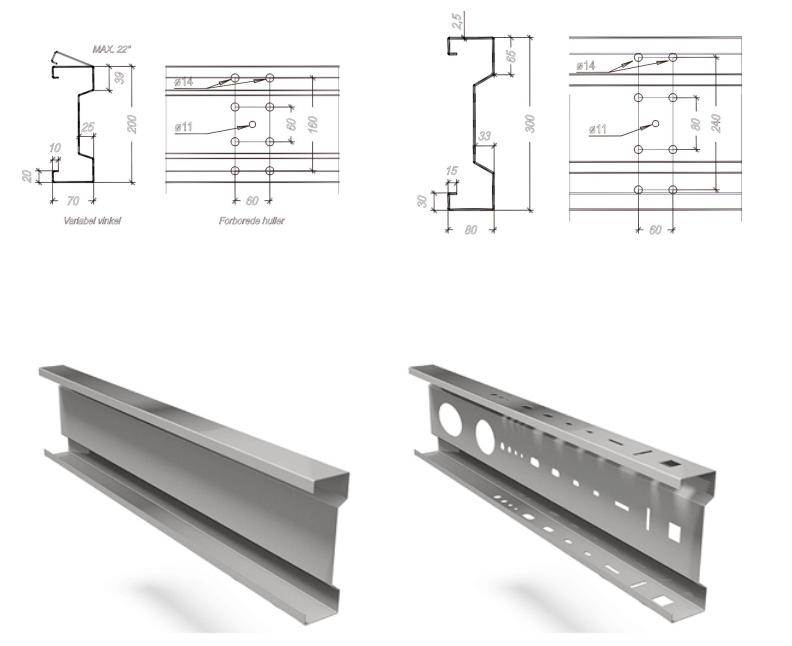

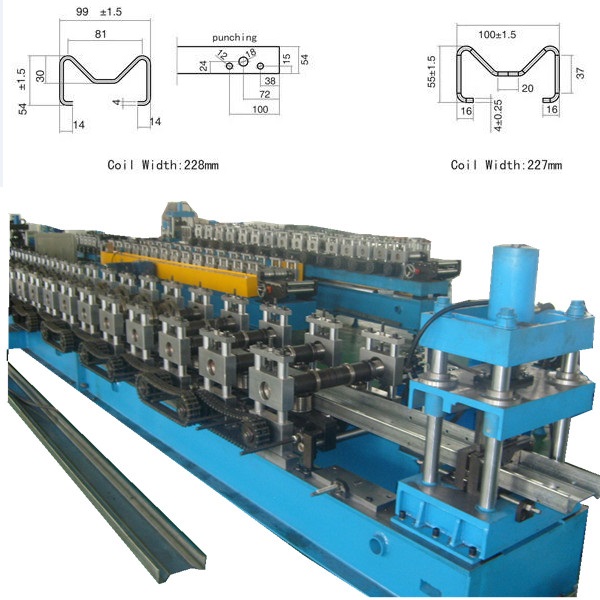

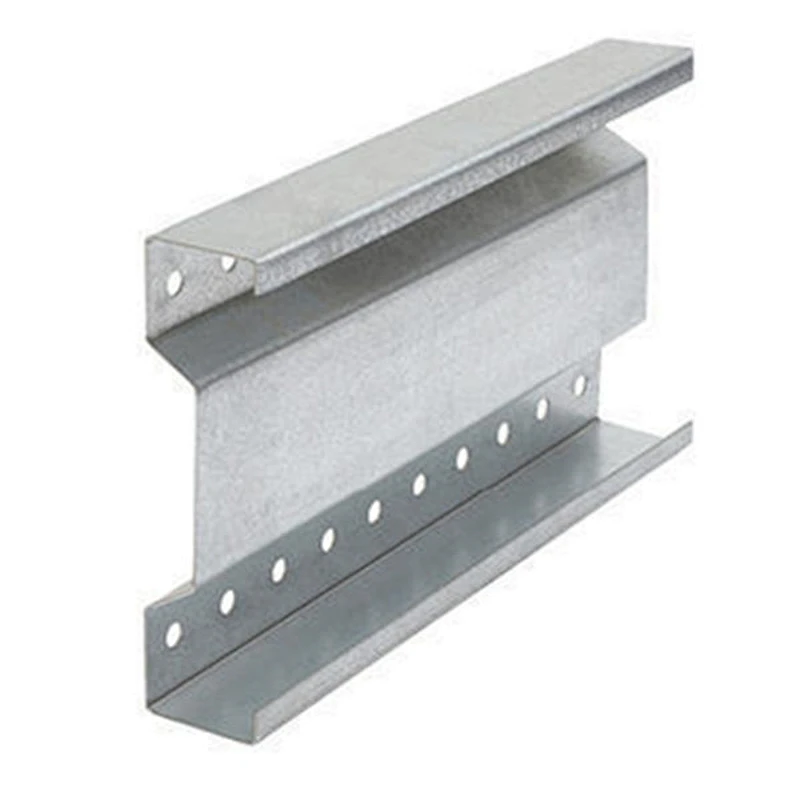

Sigma Purlins M purline drawing profile for your reference:

Here is just one size for your reference, by manual adjustment, the production line can produce more sizes meanwhile the cutting blades also needed to be changed also.

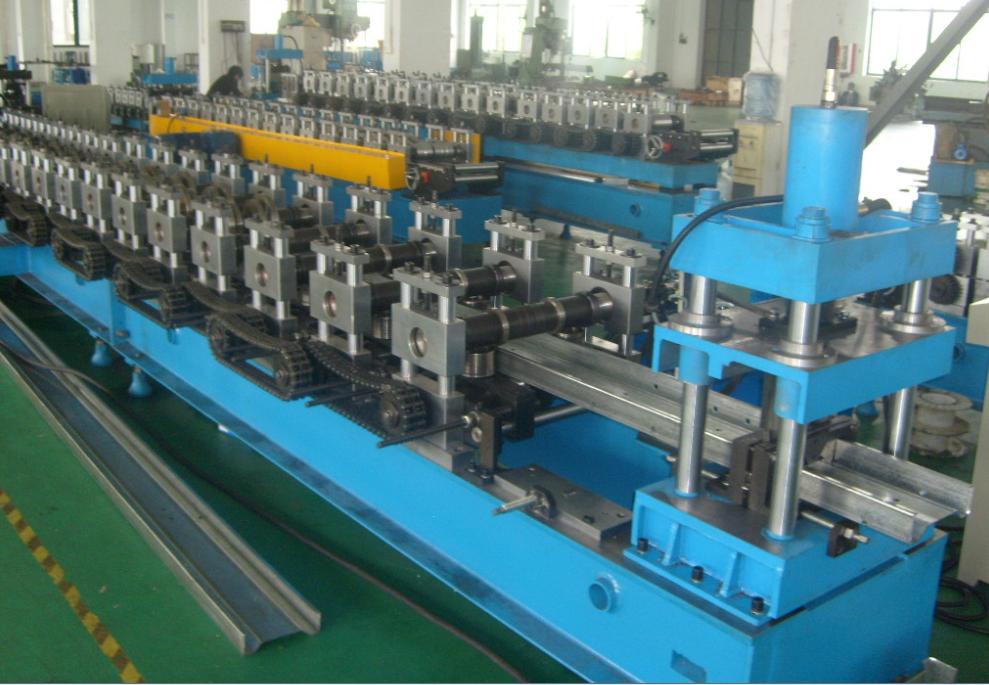

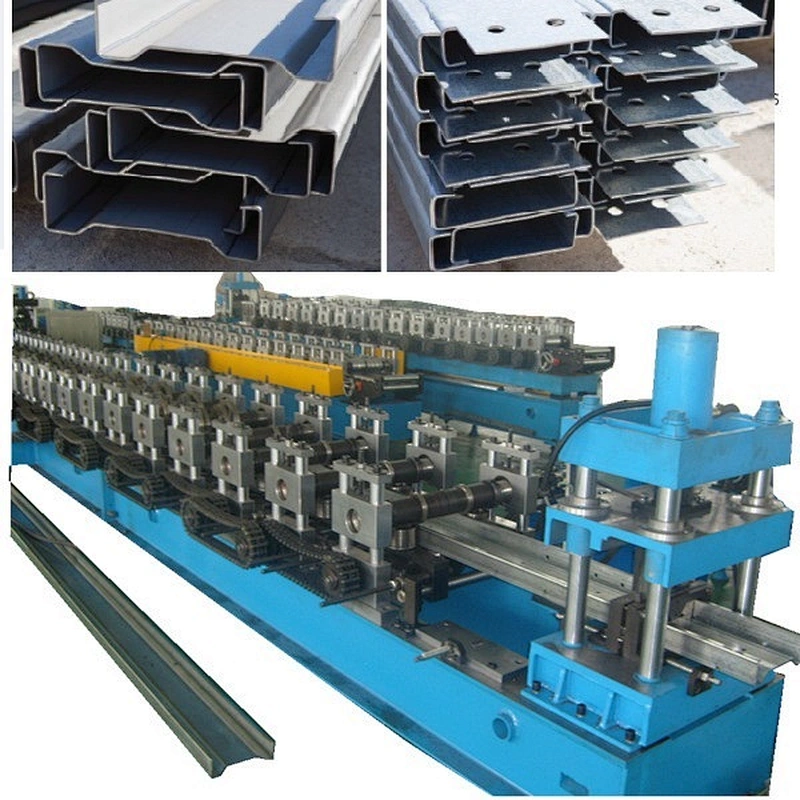

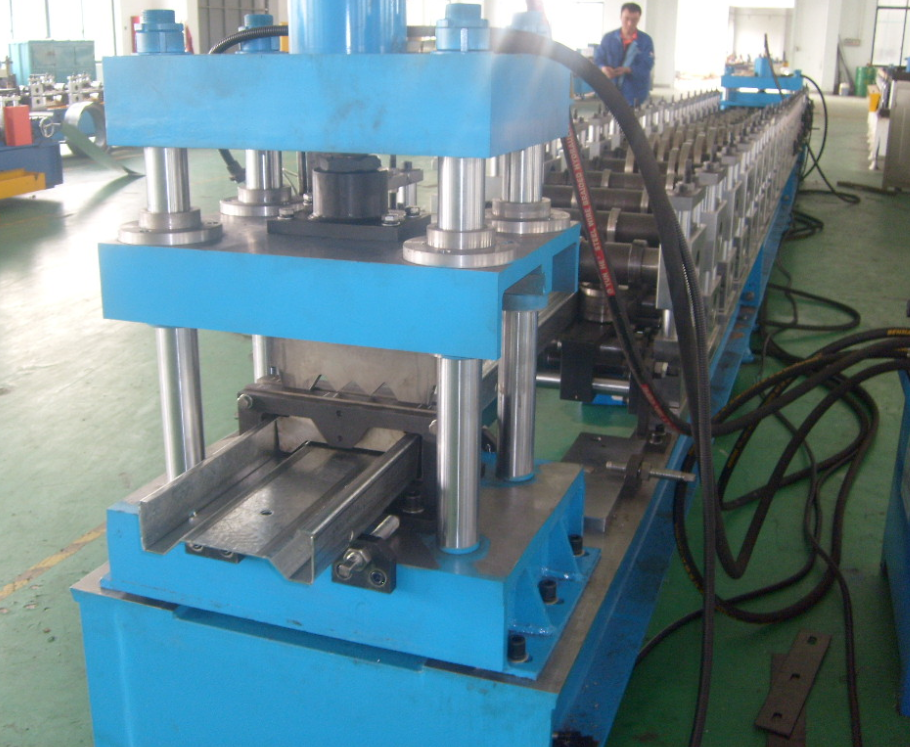

Sigma Purlins M purline rolling forming machine manual adjustment type for your reference:

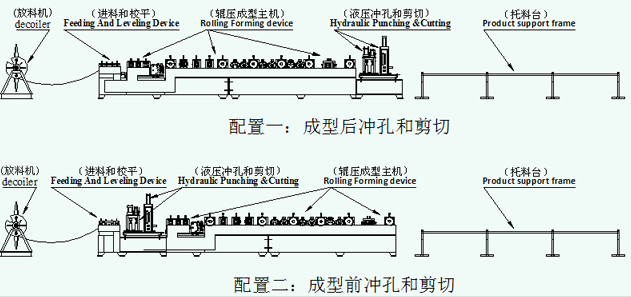

Sigma Purlins M purline rolling forming machine working flow:
Uncoiling---guiding---feeding&flatting---forming---punching&cutting---product receiving

M purline roll forming system
Roll forming system	Guiding roller	Two pcs
		Diameter of 40mm
		Tempering treatment
		Usage: to let the sheet feeding into next device in the right position
	Feeding&flatting device	5 pcs
		Diameter of 70mm
		Tempering treatment
		Usage: to feed the sheet into forming system positively and remove the sheet radian from coil, avoid the product curve and keep straight
	Rolling shaft	Shaft material: 45# steel
		Shaft diameter: 80 mm
		Tempering treatment
	Roller	Roller material: Cr15
	Roller	Quenched treatment
	Rolling station number	15 stations
	speed	Working speed: 0-25 m/minute without punching and 0-12 m/minute with punching
	Machine frame	Carbon steel welded structure
	Machine body	steel plate welded with grinding
	Bearing	Chinese famous brand Harbin
	Work power	15 kw
	Transmission	By chains

Where to use the M purline:

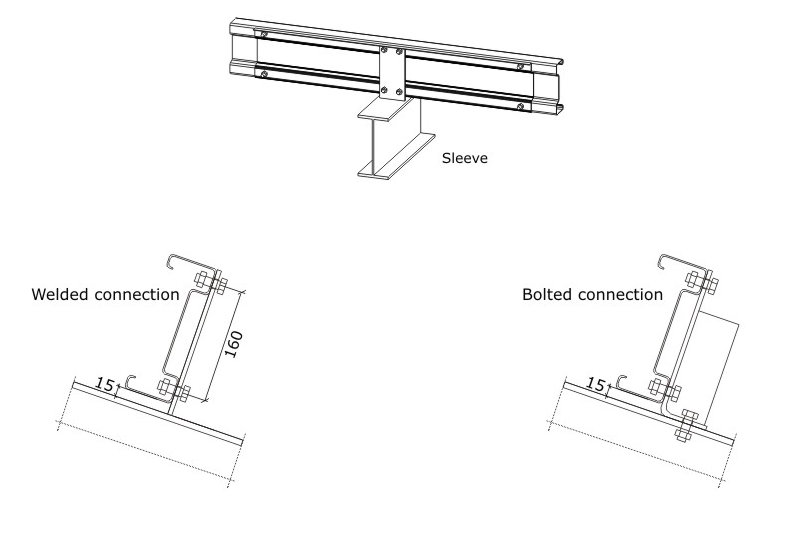

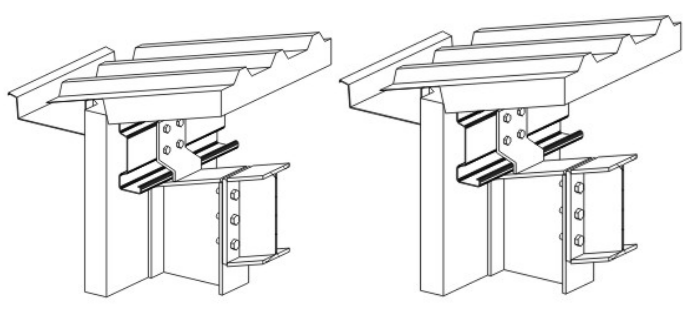

Roof purlins:

Use sleeves to shorter purline or assemble 2-span purline staggered
Keep a space of approx. 15 mm between the truss and the purlin
Eaves beams are supplied with an angled top flange, so only 1 profile is needed where roof and wall meet

Options of CUM purline fully automatic type, we will share in next article. For more information, please contact us at any time.
