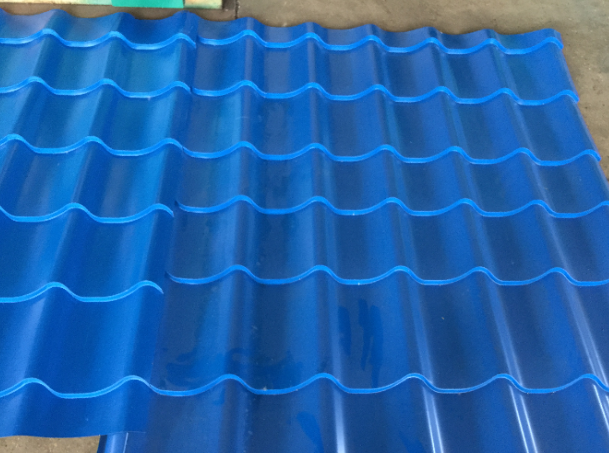

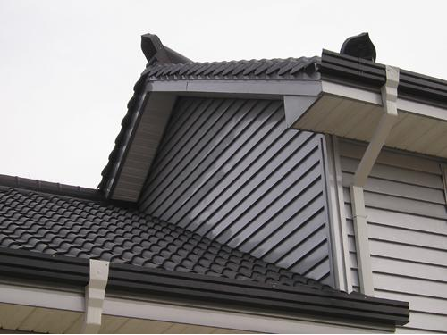

Here show you some pictures of finished products

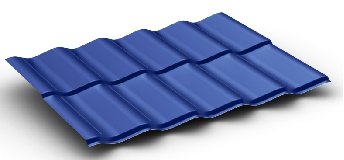

The required profile drawing

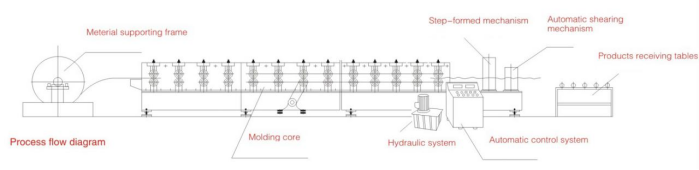

The work flow of roof tile roll forming machine.
Technical parameters
Series | Details | Parameter |
Product | Raw material | PPGI/GI |
Material thickness | 0.3-0.8 mm | |
Product cutting length | Adjustable | |
Input width | 1250 mm | |
Output width | 1100 mm |

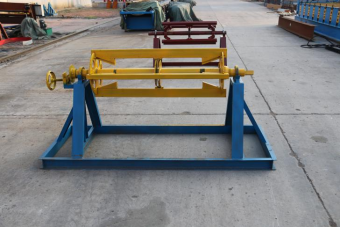

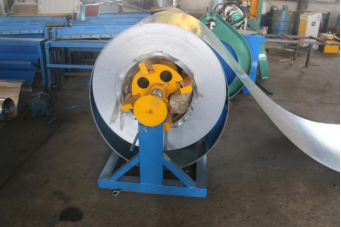

Decoiler
Decoiler | Structure | Passivetype(drove by roll forming machine) |
Loading capacity | 5Tons | |
Coil inner diameter | 450-550mm(adjustable) | |
Max loading width | 1250 mm |

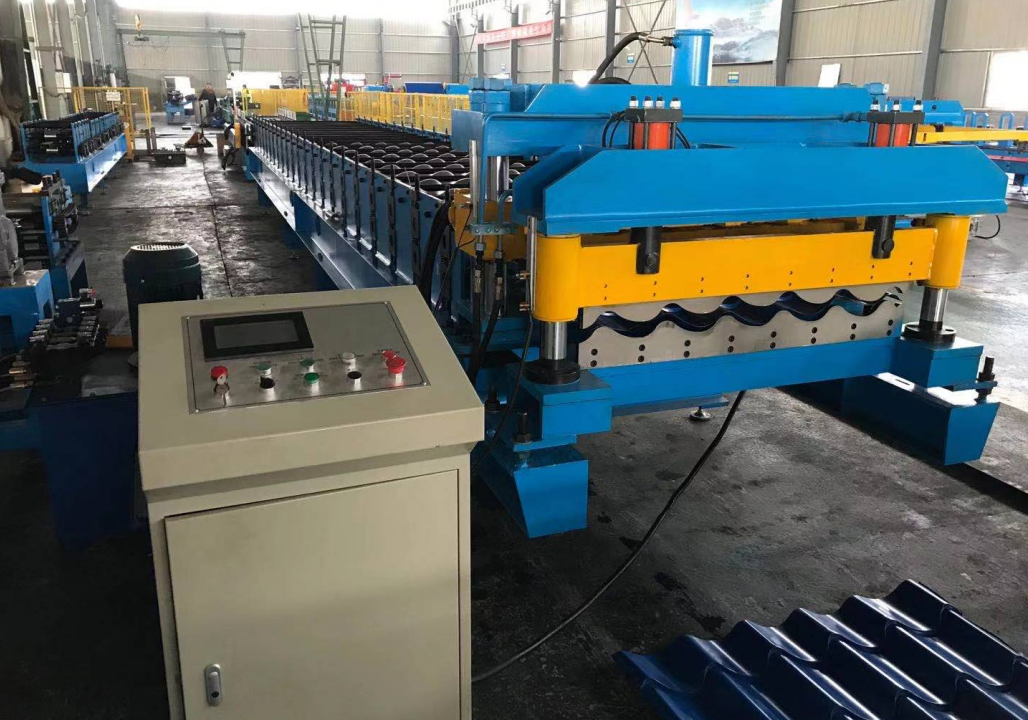

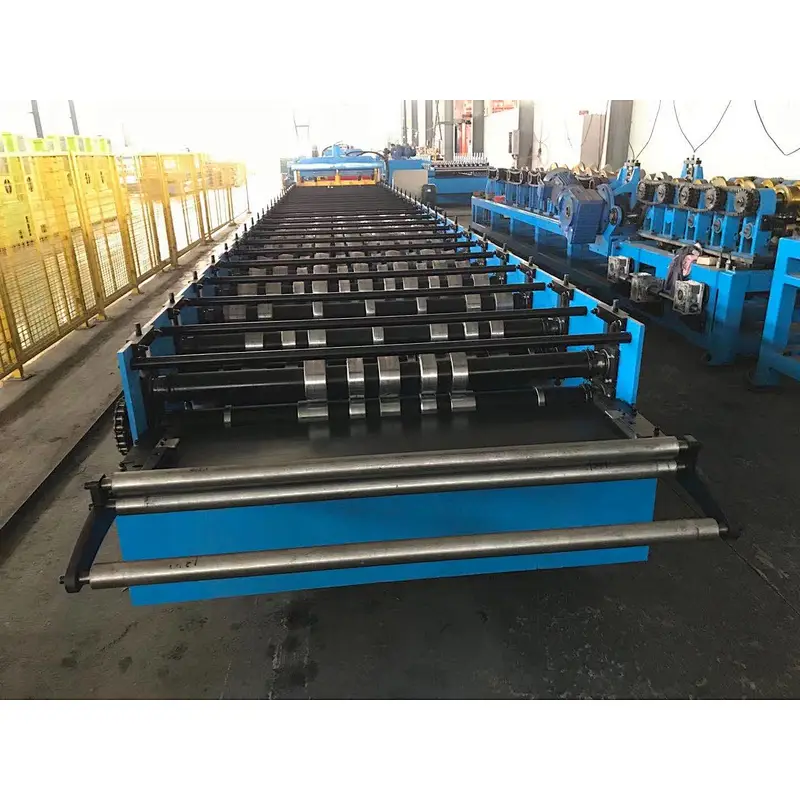

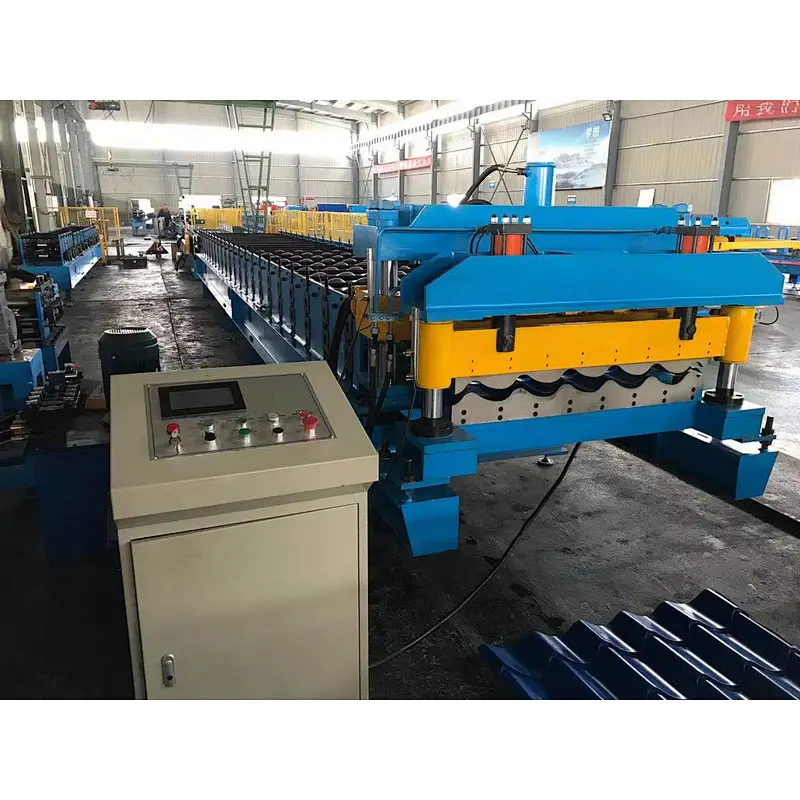

Main Roll Forming Machine
Roll forming machine | Feedingdevice | the platform width is adjustable by hand wheel, have the bearing inside to protect the edge of the steel sheet |

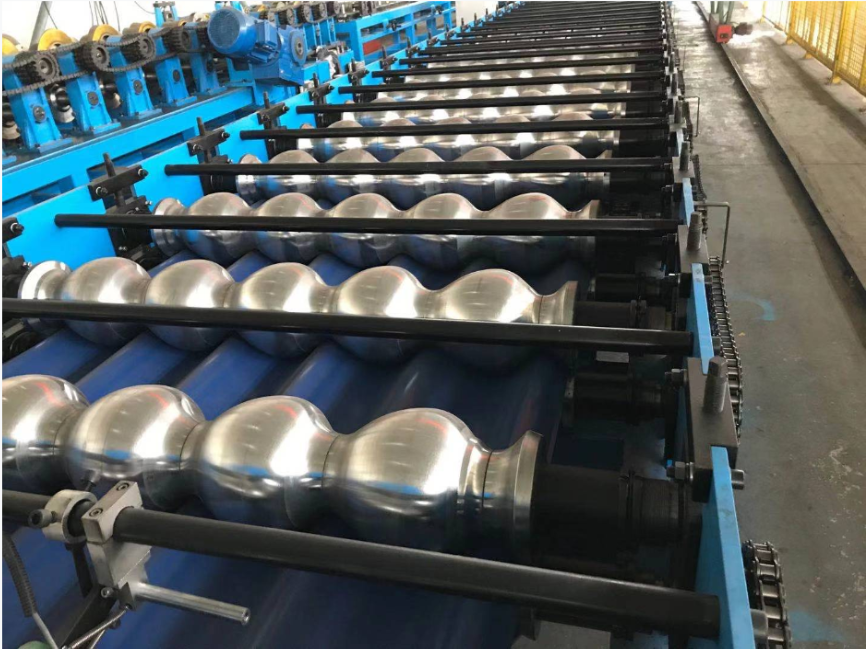

Roller | Roller material: 45# steel | |
Chromed treatment (Cr thickness:0.05 mm)anti-corrosion,Increase hardness, ensure the precision and good abrasion performance | ||
Rolling shaft | Shaft Material: 45# STEEL | |
Shaft diameter: 80 mm | ||
Tampering treatment, prevent deformed and improve the hardness | ||
Rolling station | 13stations | |
Work speed | 0-4m/min | |
Machinestructure | Steel plate welded structure | |
Machinebasic frame | 350# H steel welded | |
Bearing | Chinese famous brand Harbin | |
Work power | 5.5 kw | |
Roller spacer treatment | Electroplate | |
Steel bar treatment | Electroplate | |
Transmission | ByChains |

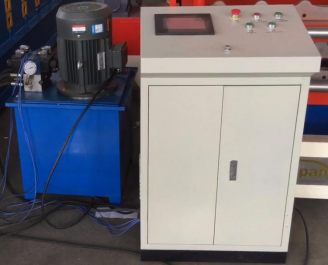

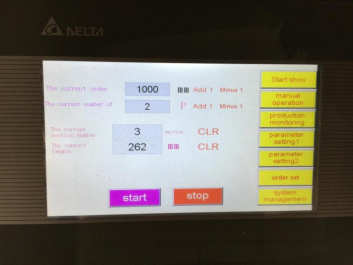

PLC Control System
Control system | Frequency brand | DELTA |
PLC brand | DELTA | |
Screen type | Touch screen | |
Screen language | English/Chinese/as required | |
Low pressure electrical part | Schneider | |
Counter brand | Omron | |
Function | Cutting length control, cutting quantity control, and speed control |

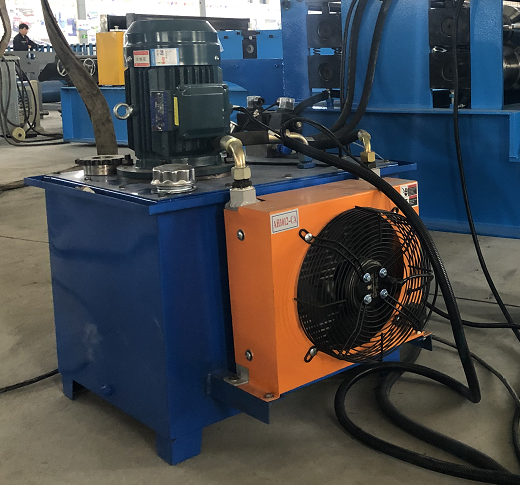

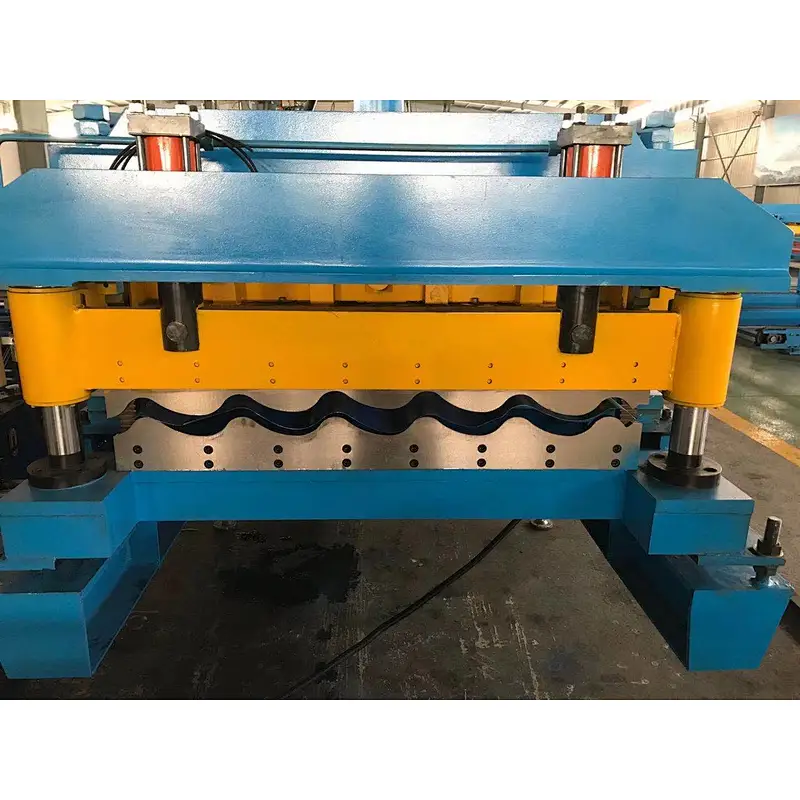

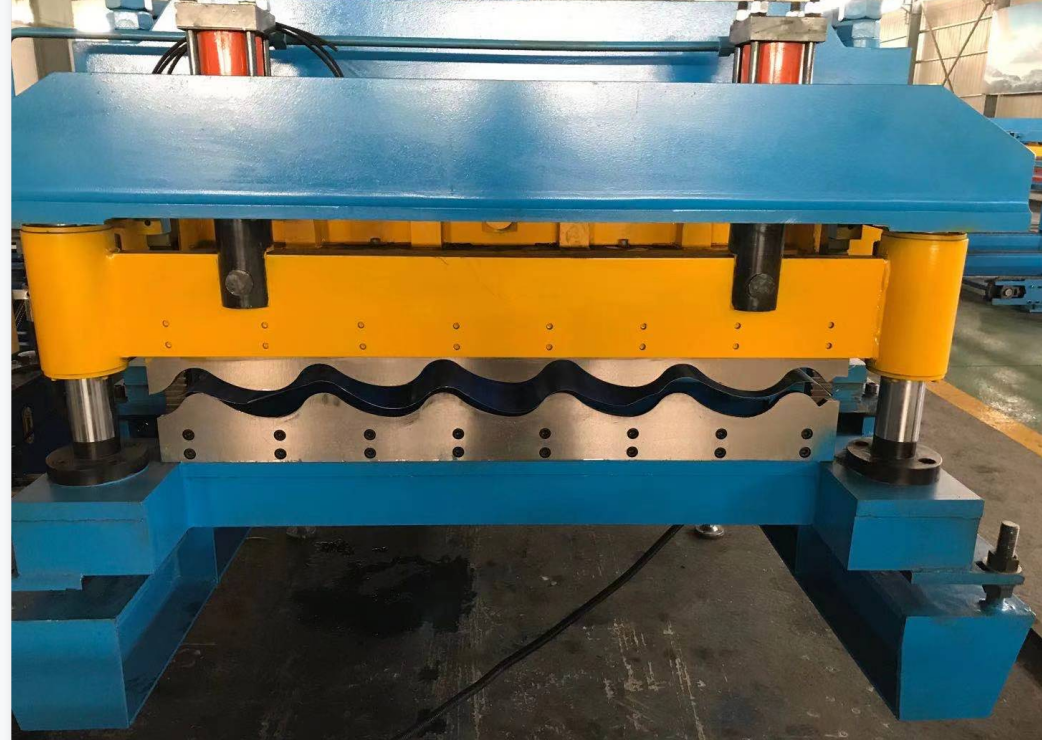

Hydraulic Cutting System
Hydraulic system | Work type | Hydrauliccutting |
Driving method | Bypillar type Cylinder, same with the one on the machine | |
Hydraulic motor power | 4kw | |
Cuttermaterial | GB-Cr12 | |
Cutting length tolerance | ±1mm/3m | |
Oil pump | Solenoid valves:1set | |
Cutting feature | Steady and safe working condition | |
Oil tube and wires connection | All the tubes and wires will be marked by the numbers or letters, So that it will be very easy to connect for the new. |
Product receiving talbe
Product table | Length | 3 meters |
Width | 1.25 meter | |
Material | Square pipe welded |
Feature of Roll Forming Machine
- PLC control system with the memory function, it can track the last order when restart the machine to save the material
- PLC control system support multi orders input
- The feeding unit with bearing inside to ensure the edge of the sheet going smoothly and flat
- Double chains driving can support the machine running long time without loose
- We adopt the pillar type cutting system, it’s more steady
- There is a manual pre cutter before rolling, it can cut the material in advance if the order finished
Payment Terms and Warranty:
Payment: 30%T/T in advance and 70%balance after testing and before shipment
Delivery: Max.50 working days after the deposit.
Validity time: 15days since the quote date.
After-sales service
A: Warranty: One year ,and we will provide the technical support for the whole life.some spare parts are available.
B: Training: the buyer should charge of visa, round-trip ticket, food and accommodation
overseas and USD80/person/day for salary.
C.The advantage of my factory: we have a team of skilled engineers and one group for after-sale service.
D:we will provide you the manual for installation, operation and maintenance in English.
