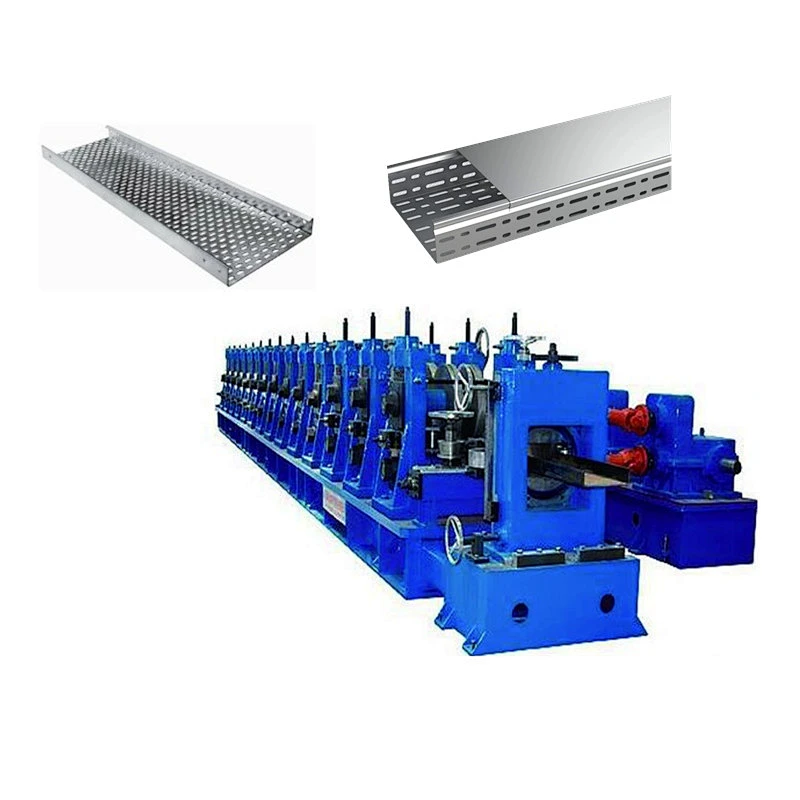

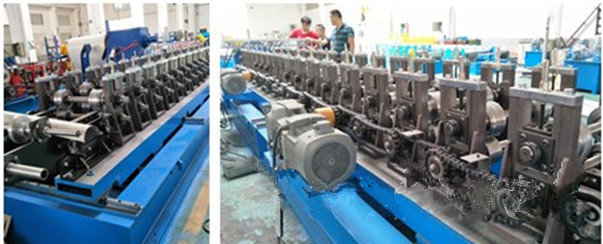

Cable Profile Roll Forming Machine With Punch Machine & Hydraulic Pre-Cutting Device

Model NO.: Cable Profile Roll Forming Machine With Punch Machine & Hydraulic Pre-Cutting Device

Quantity:

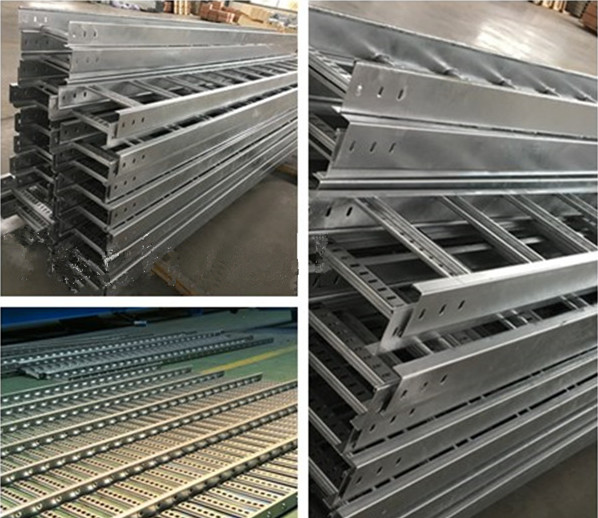

Cable Profile Roll Forming Machine With Punch Machine & Hydraulic Pre-Cutting Device

Main technical specifications

1. Coil Material: GI or Carbon Steel

2. Forming material thickness: 1.0-2.5mm

3. Decoil Type: Hydraulic Decoiler

4. Electric releasing coil, hydraulic expanding, tension

5. I.D: 508, 610mm

6. O.D: Max. 1500mm

7. Leveling Device: 2 Rollers pinch feeding, 7 rollers leveling

8. Leveling roller diameter: about Φ 90mm

9. Leveling motor power: 4.0KW

10. Feeding Type: Servo Feeding

11. Servo motor power: 3KW

12. Punching Type: Punch Machine

13. Punching Die: Cr12 Mov, quenching process

14. Punching Die size: according to drawing

15. Punching Power: 15KW

16. Punching controlled by PLC

17. Cutting: Hydraulic pre-cutting

18. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62

19. Hydraulic Station Power: 15KW

20. Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)

21. Shaft Diameter: Φ 85mm

22. Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm

23. Forming Station: 18 stations

24. Forming Speed: 0-15m/min

25. Forming Motor: 15KW

26. Size adjustment: electrical power adjustment

27. Drive type: Chain drive

working flow chart

Decoiling --- Guiding & Leveling --- Punching --- Hydraulic Pre-Cutting --- Roll Forming --- Run-out Table

Main components

Components of Cable Tray Roll Forming Machine	Quantity
Hydraulic Uncoiler	1 Unit
7 Rollers Leveling	1 Unit
Servo Feeding	1 Unit
Punching Machine	1 Unit
Hydraulic Pre-Cutting	1 Unit
Main Roll Forming Machine	1 Unit
PLC Electrical Control Board	1 Unit
Hydraulic Stations	1 Unit
Run Out Tables	1 Unit
